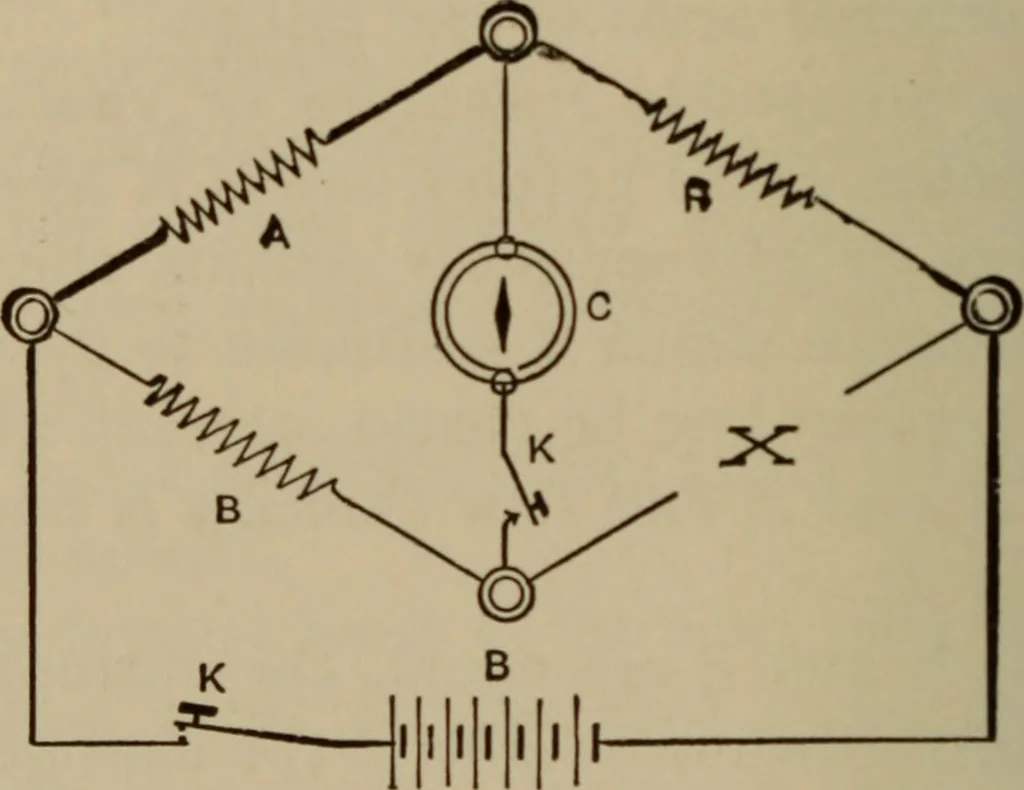

be greater than x, current flows through 75 76 ELECTRICAL INSTRUMENTS. A and through x by way of the galvanometer, andthe needle is deflected, but in the opposite direc-tion to the former case. The Whcatstone bridge is based on the fact thatno current flows between points of equal potential.… … Fig. 58. If the galvanometer be connected to a point ineach wire equally distant from either end, say themiddle of each, no current will flow in the gal-vanometer. The effect is the same as if both terminals ofthe galvanometer were placed on the same spotin a single wire carrying current. Shift one…
