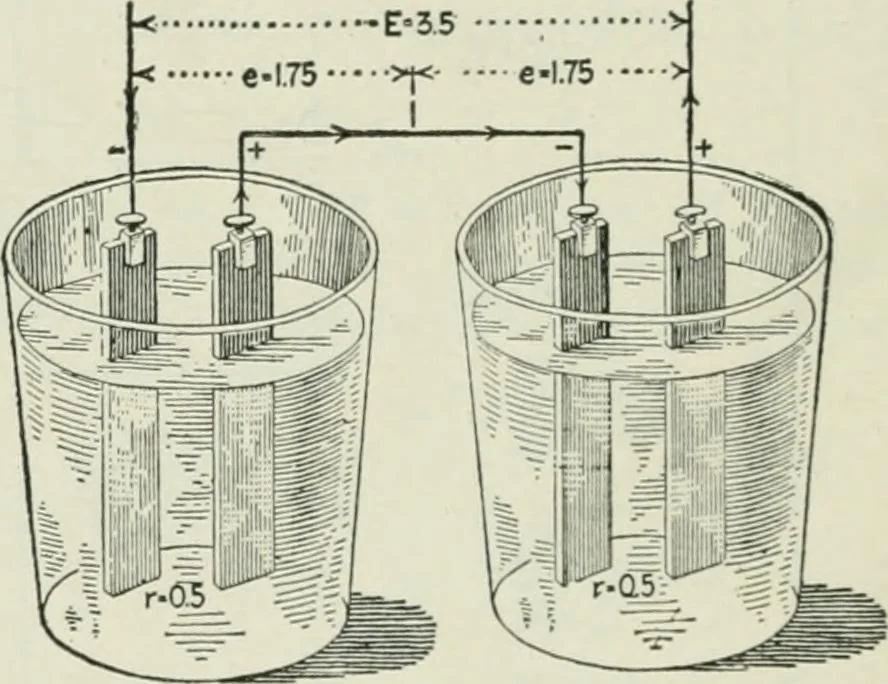

ectrical energy. Tliat is, the total powerproduced in the device is not available at its terminal, aswe shall see from a consideration of the latter circuit. In Fig. 96 are shown the cells of Fig. 95 connected to an externalcircuit of two resistances in parallel. The joint resistance of the… … Fig. 95.—Two voltaic cells comiecto.l in series. Tracing the circuit from the positive terminal in Fig. 96through the resistances r^ and r^ back through the cells tothe positive terminal, we have a condition similar to thatgiven in Fig. 94; that is, two resistances connecting in par-allel in…
