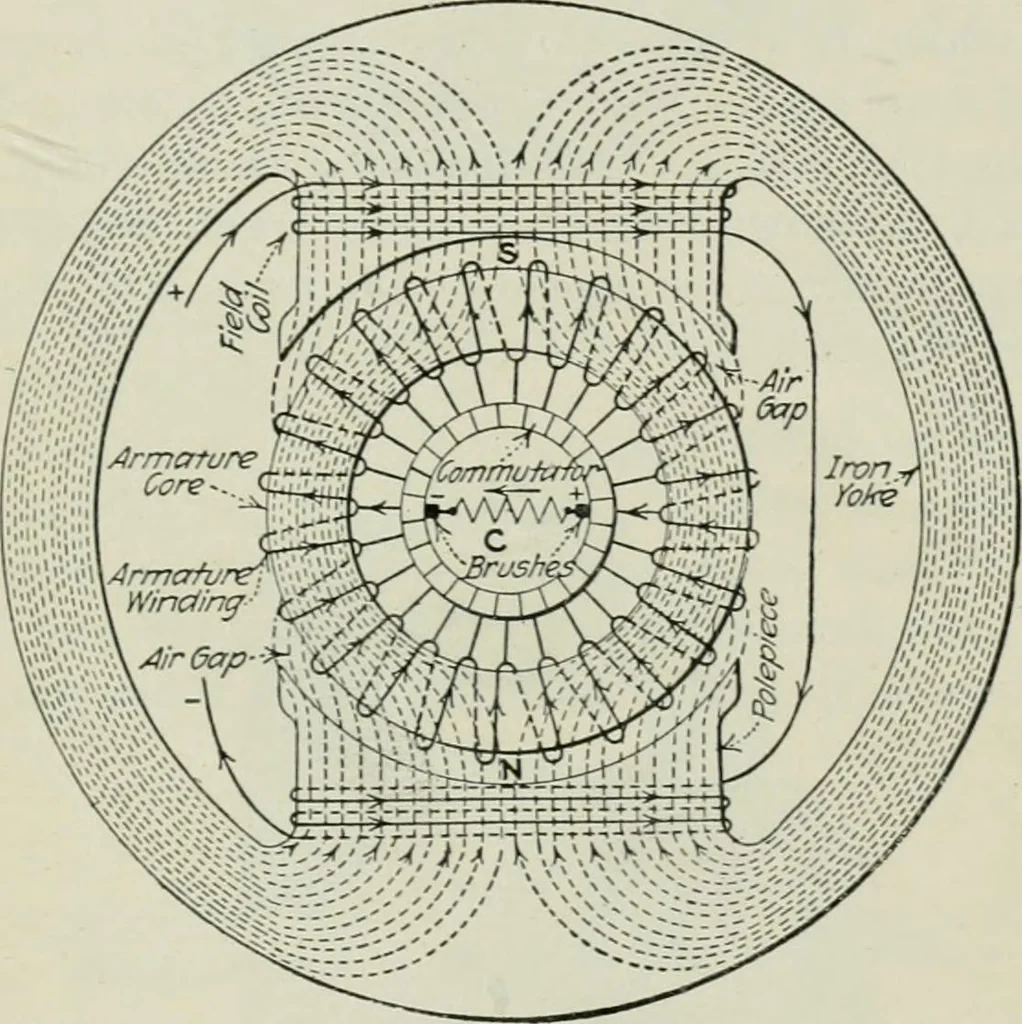

into thenegative brush, as indicated by the arrowhead; likewise, forthe conductors under the S pole. Since the two halves of thewindings are in parallel, the voltage appearing at the brusheswill be that developed in one half of the winding, just as whentwo voltaic cells are connected in… … Fig. 156.—Same is machine in Fig. 154, but with brushes connected to an external circuit. the external circuit C, 15 amperes will he flowing in the con-ductors under the N and 15 amperes in the conductorsunder the S pole. This is again the same as when twovoltaic cells are connected in parallel and…
