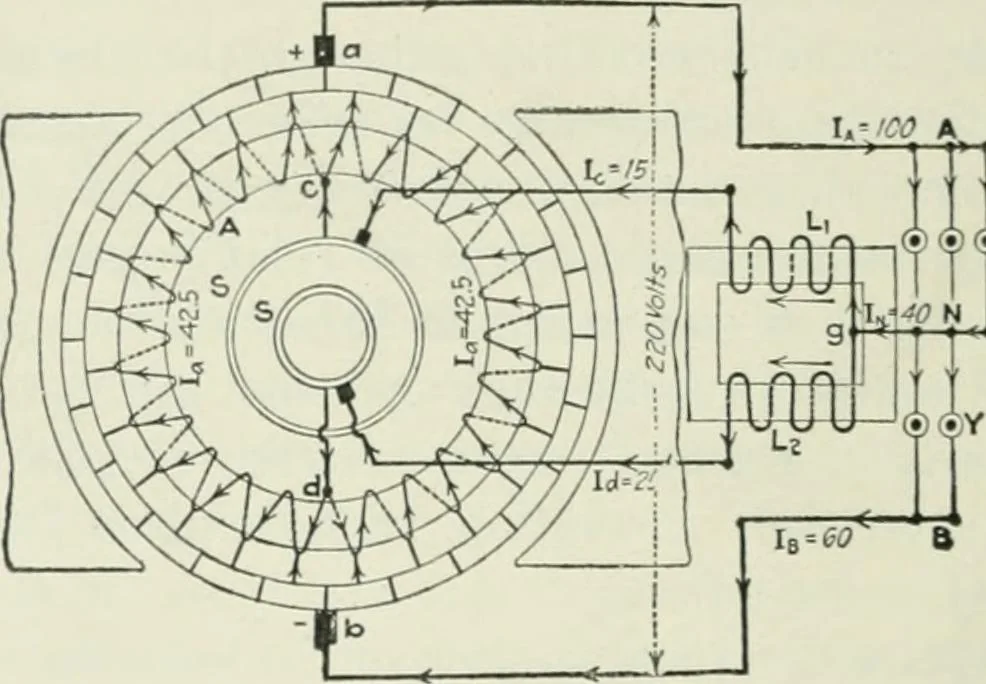

15through Lo, making a total of 15 amperes in Li and 25 amperes in Lj. The25 amperes flowing through L^ enters the armature winding at d and divides12.5 amperes flowing through the winding to the right of brushesh and n and 12.5 amperes to the left, making a total of 30 + 12.5=42.5amperes flowing… … iJ^C N I Fig. 324.—Shows distrilnition of cunoiit in three-wire generator. The ne.xt thing is to investigate the power distribution in the system.The entire load on the generator is the sum of the loads A and } amithe excitation recjuired by the inductances Li and Lo. Since the current in A is 100…
