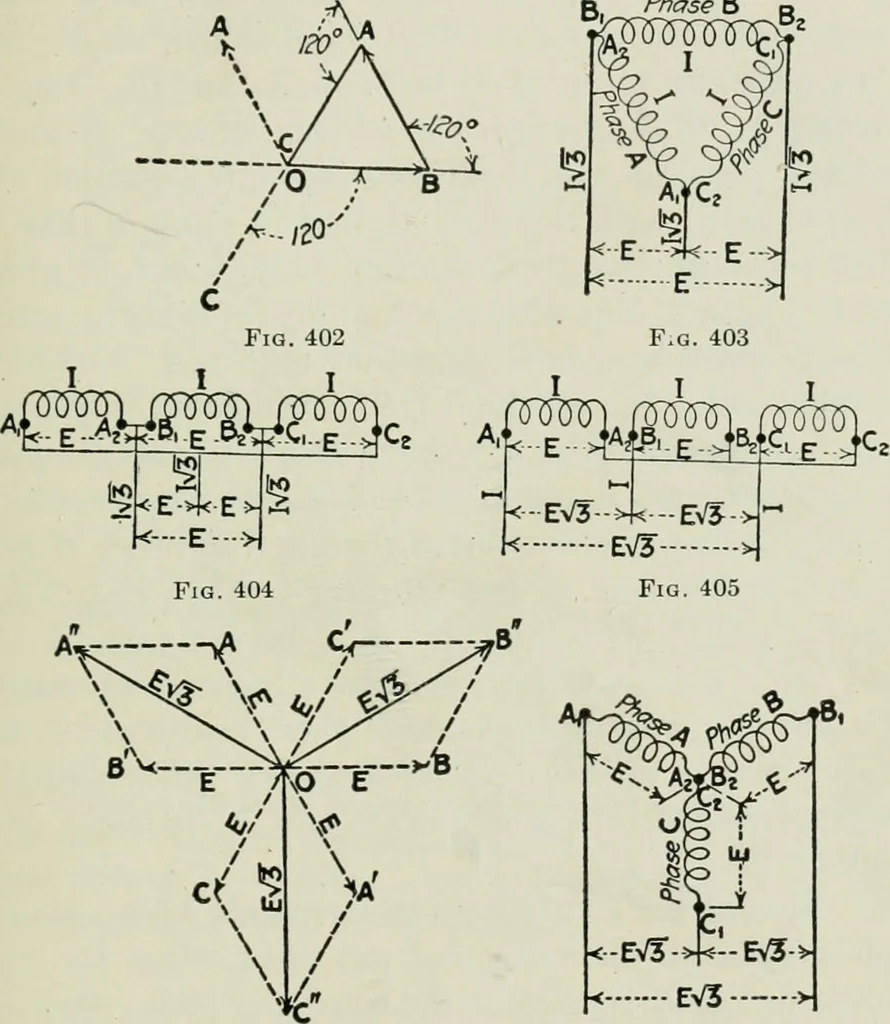

TWO-PHASE AND THREE-PHASE CIRCUITS 347 that per phase. The current per terminal cannot be the cur-rent per phase, as each leg of the circuit connects to two dif-ferent phases; therefore the current leaving or entering atany one of the junctions between the phases will be someresultant of the… … Fia. 406 <-E>^->H-EV5-5. EV3 Fig. 407 Figs. 402 to 407.—Diagrams of three-phase circuits. the same value) which is delta-connected, the current perterminal will be that of one phase times the square root ofthree. If the current per phase is represented by /, the cur-rent per terminal will…
