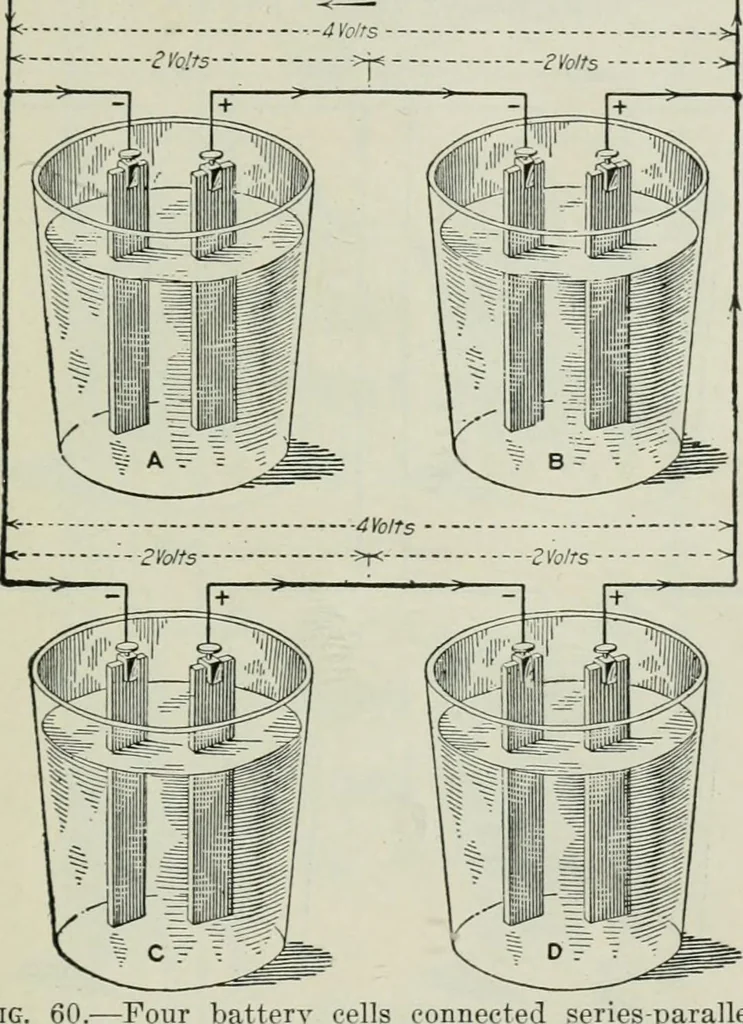

creased according to the nun.h,.r of cells so grouped Toincrease the voltage of the group and at the same time make FUNDAMENTALS OF THE ELECTRIC CIRCUIT 45 it possible to increase tlie current, a number of cells can beconnected in a combination of a series and a parallel group-ing. There are two… … Four battery cells connected series-parallel. neeted in series parallel. Cells ^1 and B are connected inseries, also C and D. Then the positive and negative ter-minals of group CD are connected to the positive and neg-ative terminals of group AB respectively. By comparingFig. 60 with Fig. 53 it…
