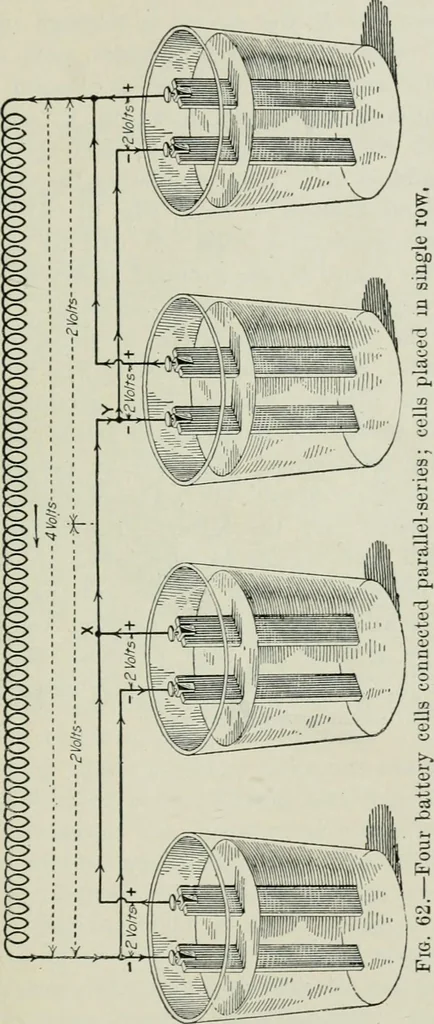

allel, also cells ( and D. Then the twogroups are connected in series. It will be seen that if theconnection XY is removed, the grouping of .4. and B, and Cand D, will be tlie same as that in Fig. 53. The voltagebetween the outside leads in Figs. 60 and 61 is the same, butacross the group it is… … nected in series. In Fig. 61 the two cells in each group areconnected in parallel; consequently the volts across the 48 ELECTRICAL MACHINERY group is that of one cell, or in this case, two volts. The flowof the current is indicated by the arrowheads. Startingfrom the terminal E, the circuit is…
