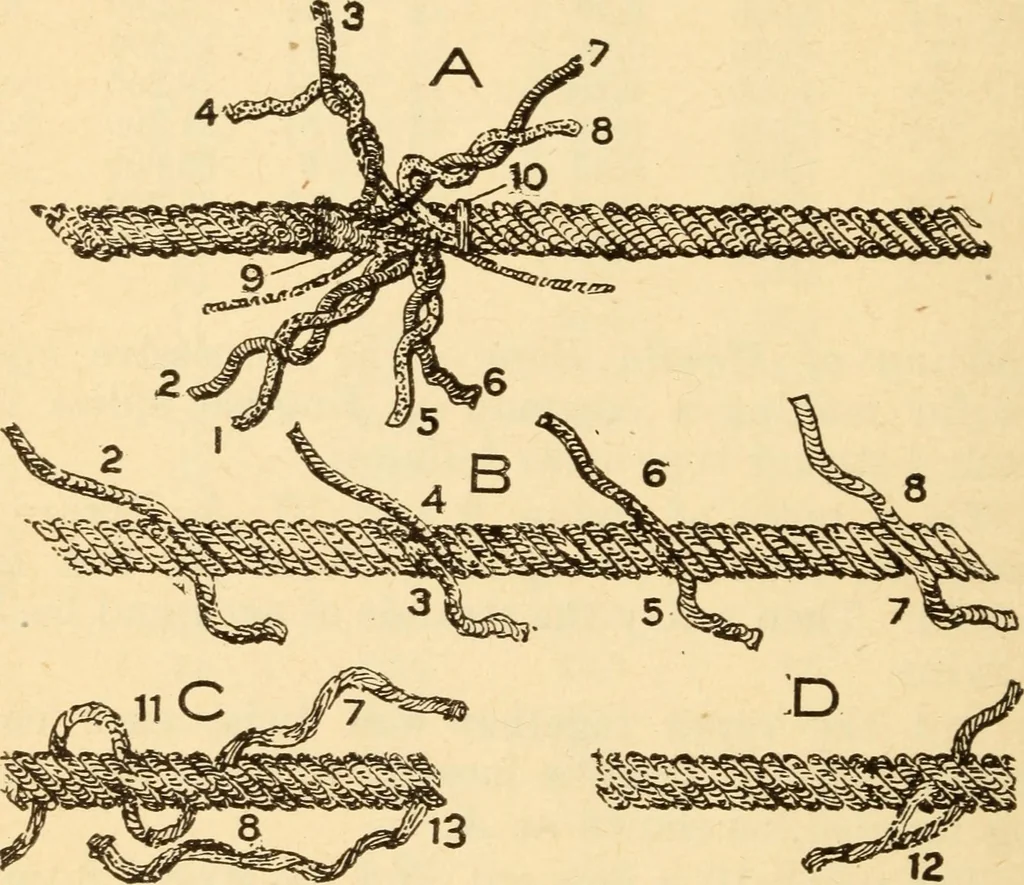

in its place. 5. The ends of the cores are now cut off so theyjust meet. 6. Unlay strand 1 four and a half feet, layingstrand 2 in its place. 7. Unlay strand 3 one and a half feet, laying instrand 4. 202 ELECTRICAL TABLES AND DATA 8. Cut all the strands off to a length of abouttwenty inches, for… … Figure 20.—Method of Splicing Ropes. 9. From the point of meeting of the strands 8 and7 unlay each one three turns; split both the strand 8and the strand 7 in halves, as far back as they arenow unlaid, and the end of each half strand*whipped with a small piece of twine. 10. The half of the strand 7…
