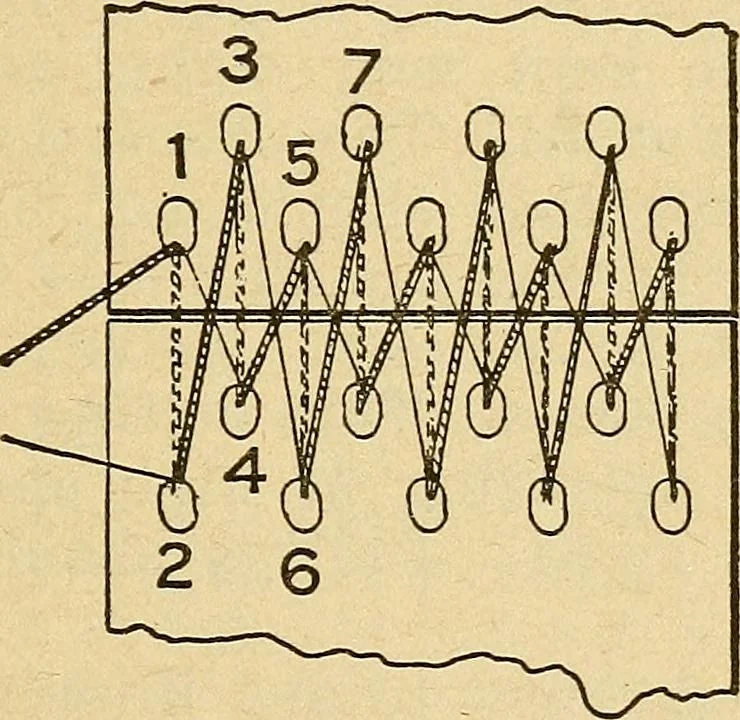

ND DATA 19 Holes should be punched as nearly as possibleaccording to the following table: TABLE II Width of Belt 2 to 6 to 12 to 18 to Distance from edge of belt— 6 in. 12 in. 18 in. 24 in. First row i f ,| 1 First row i f | 1 Second row. £ 1 1£ 1§ Second row 1 1^ 1J 2 Distance apart of each row of… … Figure 1.—Method of Belt Lacing. of pulleys and multiply by 1.57; to this add 2 timesthe center-to-center distance. The length of beltingcontained in a roll can be found by reference toTable III. Multiply number of layers in roll bynumber found where outside diameter of roll anddiameter of hole in…
