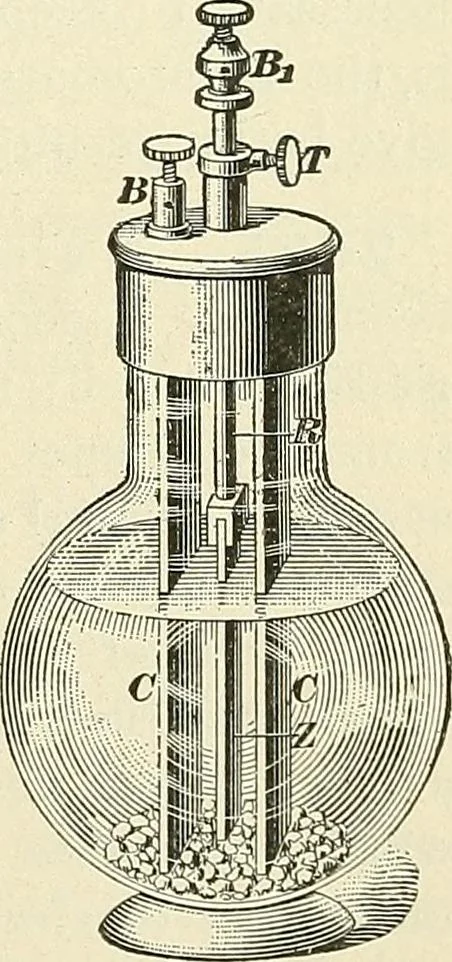

e alum on the cathode, these crys-tals being poor conductors. In certainforms of cells the construction is suchthat this is not liable to occur. 2624. Afamiliar type of bichromatecell is the Grenet cell, shown in Fig.1038, which consists of a bottle-shapedglass jar with a hard rubber or… … 1720 BATTERIES. may be drawn up until the zinc is entirely out of the liquid;it is held in any position by the thumb-screw T. On the topof the brass rod is a binding-post B^, the other terminal ofthe cell being the binding-post B^ which is connected to thetwo carbon plates. The electrolyte is…
