International Library of Technology · Scranton, International Textbook Co. · leaf 310

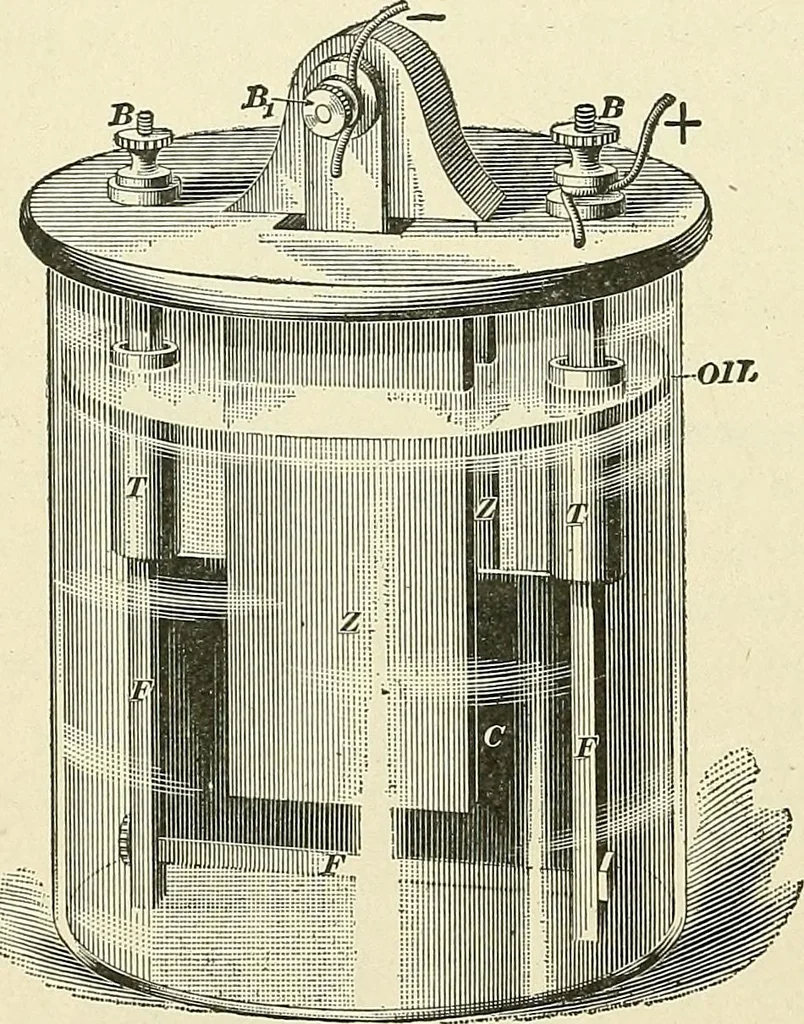

zincplates Z, Z, which arehung from each sideof a lug on the por-celain cover of thejar. The sides of thecopper frame of theoxide plate are car-ried up through thecover supporting theplate, and form ter-minals B, B, either ofwhich may be usedas the positive ter-minal of the cell.The copper frame… … Fig. 1053. BATTERIES. 1745 A heavy paraffin oil is used in this cell to prevent theaction of the air on the solution; the oil layer is representedin Fig. 1053. The cell shown is 5^ in. X 8^ in., outside dimensions, andwill give a current of 3 amperes at a potential of about .7volt for 50 hours,…
Electrical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Electric engineering.], 1902, leaf 310](https://img.insideoutlibrary.com/img/1024/ia-electricengineer01inte-310-132.webp)
