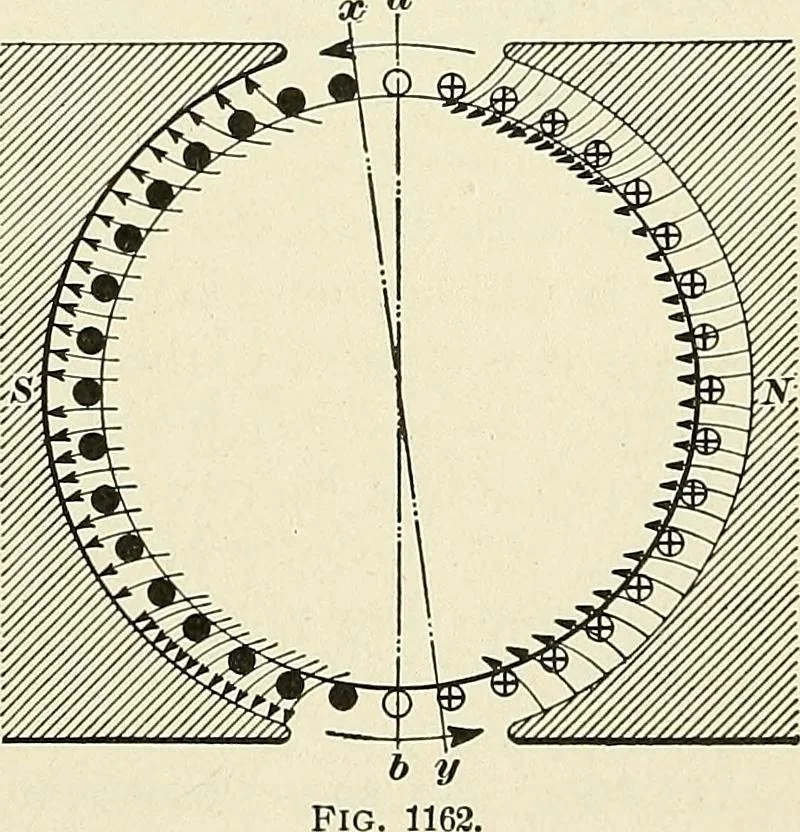

distributed. This is in-dicated in Fig. 1162, in which an armature core situated ina bipolar field is repre-sented, with the conductorsequally spaced around itsperiphery; these conduct-ors are supposed to be con-nected up as a closed-coilwinding, either ring ordrum, and a current is sup-posed to be… … 1970 APPLIED ELECTRICITY. vS pole the current is in the opposite direction. This is indi-cated by marking the conductors with a -J- and a soHd blackdot, respectively. The relative distribution of the lines of force is indicatedby the lines from the pole-pieces to the core; their distribu-tion…
