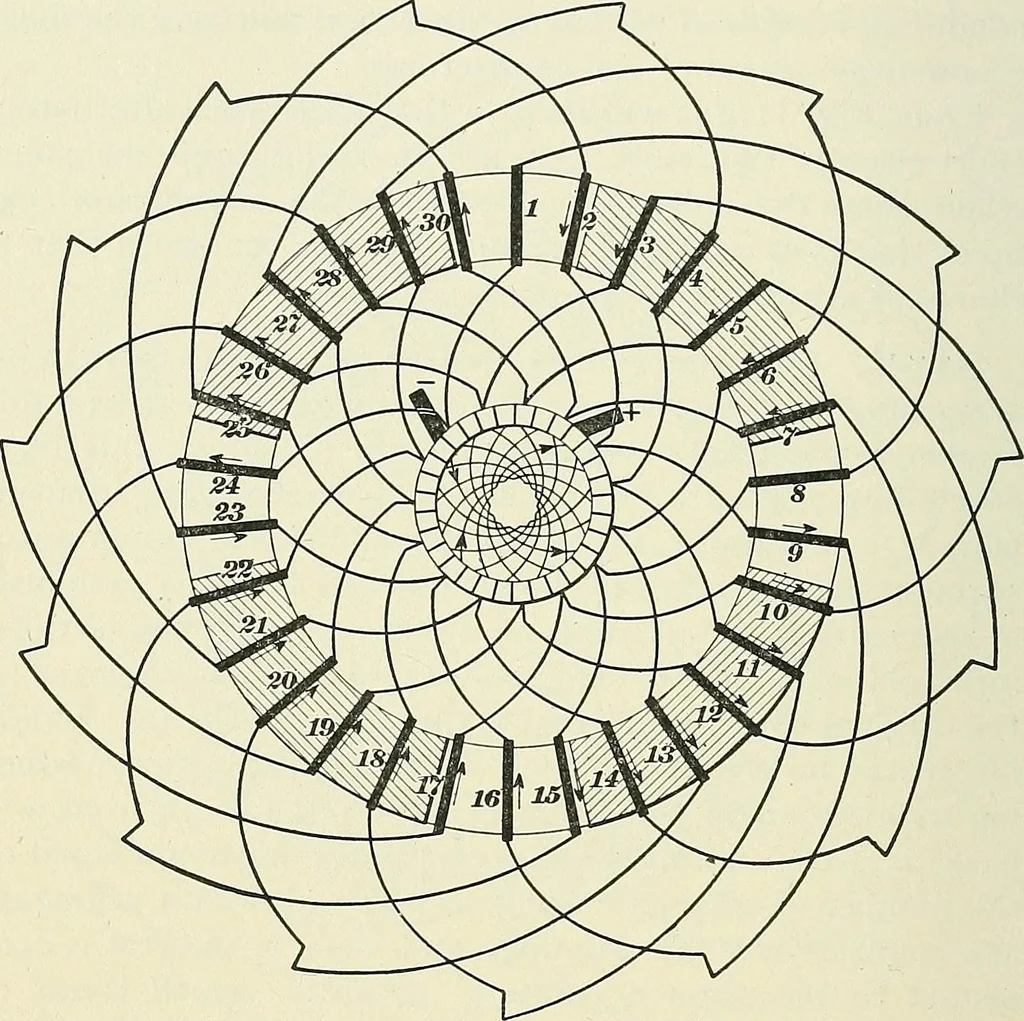

at gen-erated in one coil, instead of that generated in/ (2) coils, aswould be the case if the interpolated segments were notused. 3163. When in the position shown in the figure, the coilformed of conductors 1 and 8 is short-circuited by the— brush. If the armature is rotated in the direction… … Fig. 1176. and so on, as the armature rotates. (Compare this withArt. 3132.) Only two of the cross-connectors carry the current at anyone time, as indicated by the arrow, Fig. 1176. 3164. With more than two pairs of poles, an additionalset of interpolated segments must be used for each pair of…
