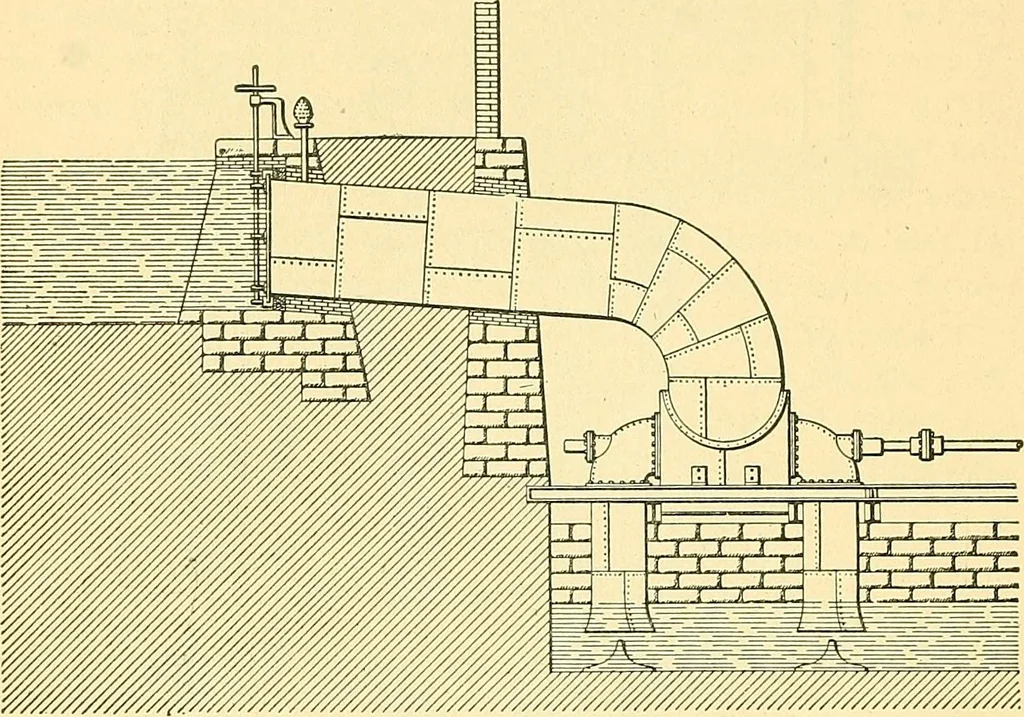

ows a typicalarrangement of a horizontal turbine, or rather a pair of tur-bines. In many cases these turbines are direct-connected 14 ELECTRIC TRANSMISSION. 14 to the dynamos, an arrangement that is becoming verycommon in water-power-transmission plants, where the con-ditions are suited to this… … Fig. 7. one room, and the machines are driven by the shafts whichextend through into a separate dynamo room. When thedynamos have to run at a high speed, it is necessary, ofcourse, to use belting. In a great many plants the dyna-mos are driven by vertical turbines through belting or gear-ing, but…
