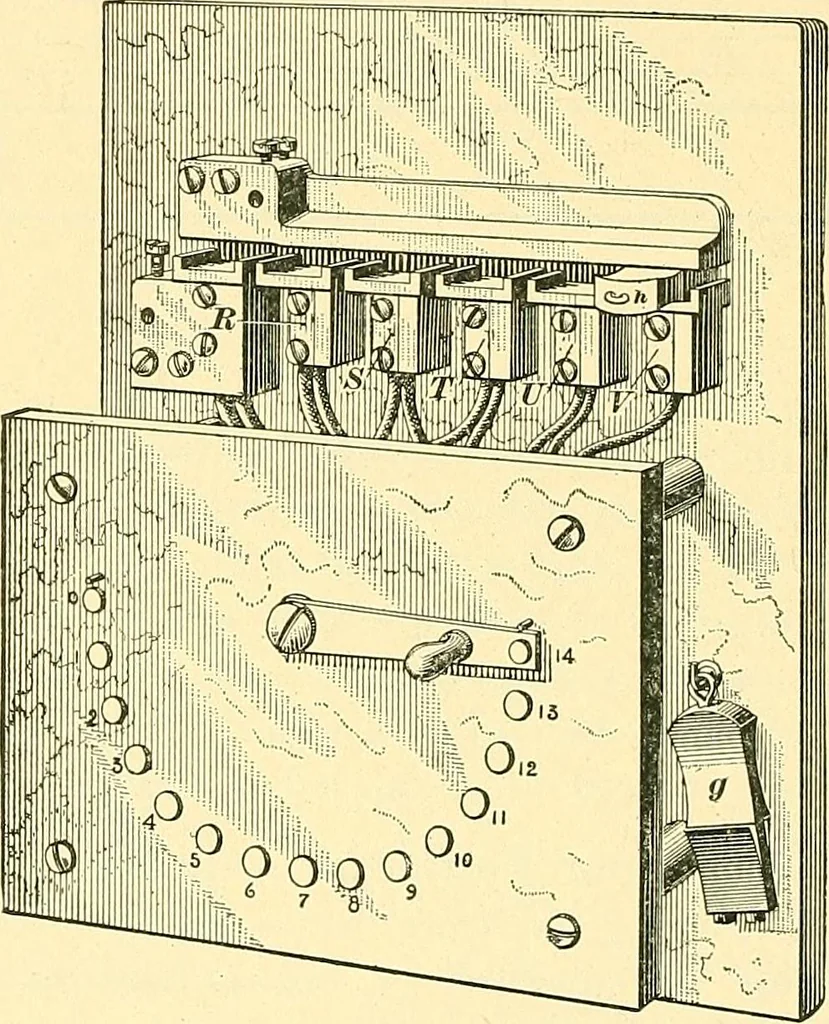

y of which is divided into a numberof sections with leads brought out to terminal blocks R, S, T,etc., Fig. 24. The secondary is also divided into a numberof sections with terminals brought to the contact points1, 2, 3, etc. The voltmeter is of the ordinary coil-and-plunger type with a small… … Fig. 24. main circuit, as shown, and the secondary is connected tothe small auxiliary coil. When the voltage at the distribu-ting end of the line is at its correct value, the hand of thevoltmeter is at its mid-position. When the load increases,the current through the primary of the compensator…
