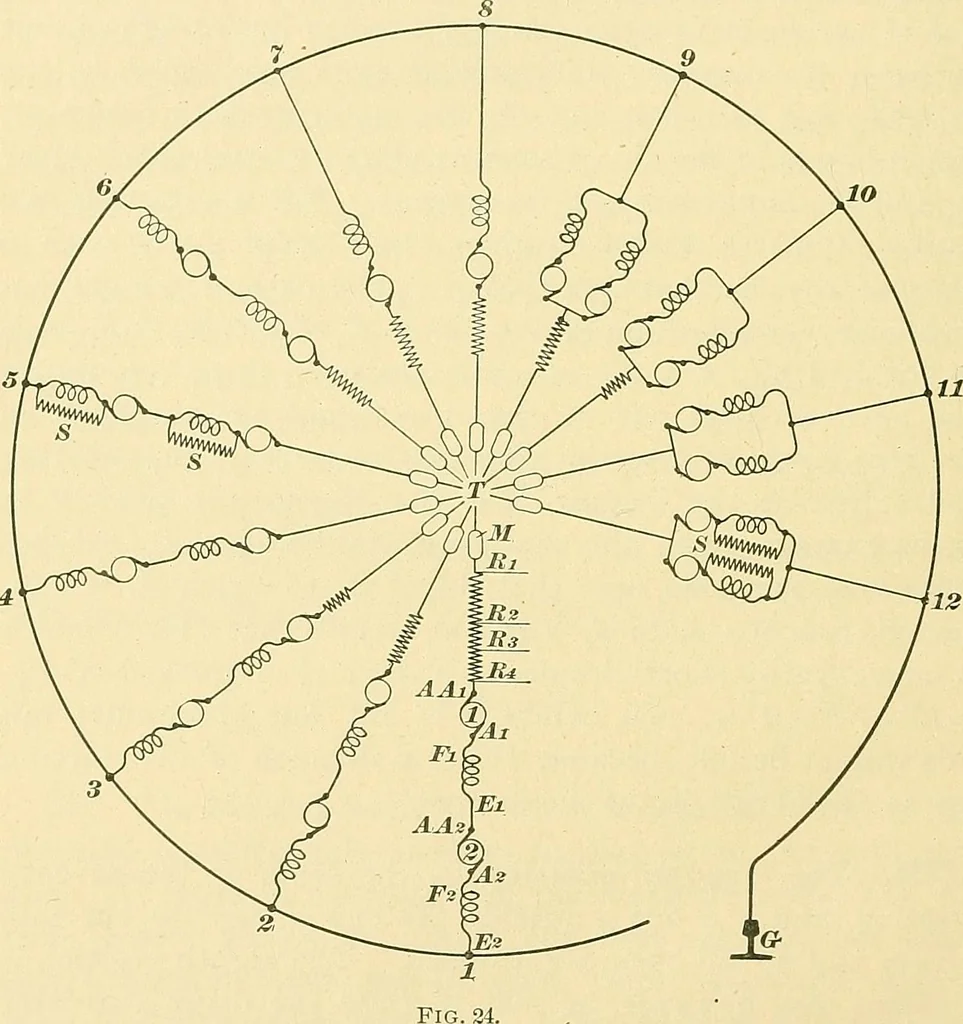

two sections of the starting coil. The arrival of the 36 ELECTRIC RAILWAYS. 24 drum on the ninth position brings plates 6 and 7 into action,and enables the No. 2 motor to get current through finger IS.The current divides between the two motors at the point Owhere the resistance wire splices on to… … 31. The tentli position is the seventh notch, but it isnot a running notch. The two motors are in multiple andare in series with but one section of the starting coil, becausefinger R^ touching plate MK^ cuts out that part of the coilthat lies between R„ and R„. 24 ELECTRIC RAILWAYS. 37 32. The…
