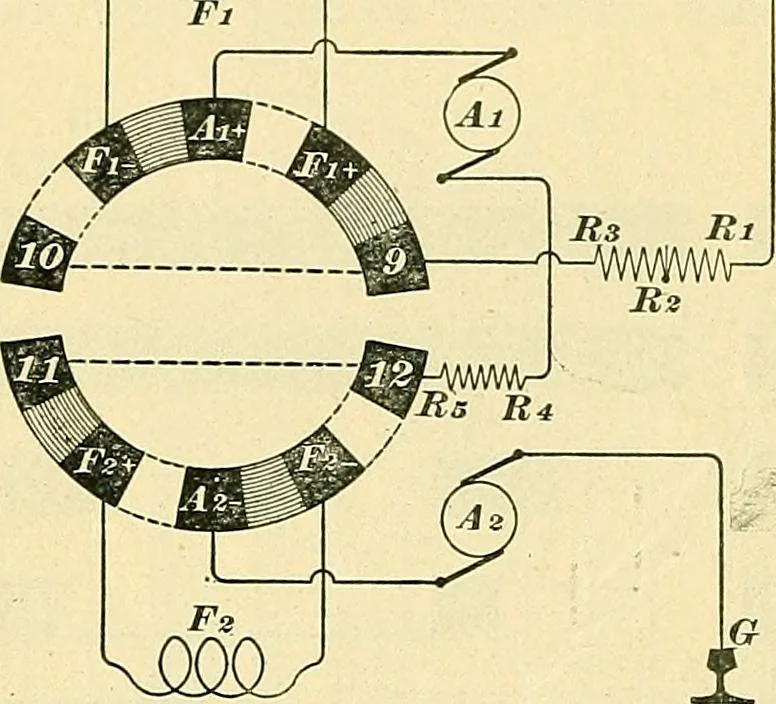

e 28A reverse switch.In this diagram, all the devices have been left out save the motors and resistances. All( OOO] ^ wires, instead of running to their respective con-trolling devices, as on acar, are here run direct tothe reverse switch. Themechanical details of themoving parts of the switchare… … F2 Fig. 33. flat vulcabeston, slate,which are screwed theis pivoted at O and can be moved ahead or back, but in thefigure it is in the off-position, in which - position it canbe taken out. Posts F^ — , A^A^, F^-\-, F^ — , A^ — , andi^„+, in Fig. 33, are stationary; besides having connect-ing posts…
