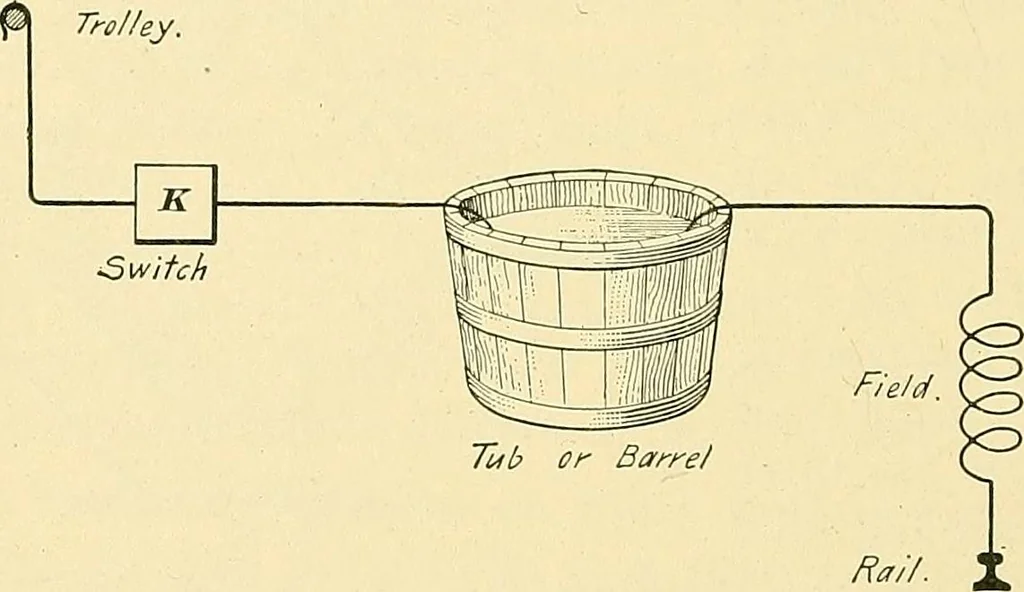

ion ofcurrent. 90. Test for Field Connections.—If there is any doubtas to whether a set of field coils is connected properly ornot, the matter can be decided by a very simple test with apiece of soft-iron rod about 3 or 4 inches long. It is wellknown that if a piece of iron is placed near a magnet… … Fig. 67. polarity test is inexperienced, it is a safe plan to take the arma-ture out of the motor, because when a current is sent throughthe field coils and the pole pieces become magnetized, theyinduce poles of the opposite polarity in the armature coreopposite them, so that unless great care is…
