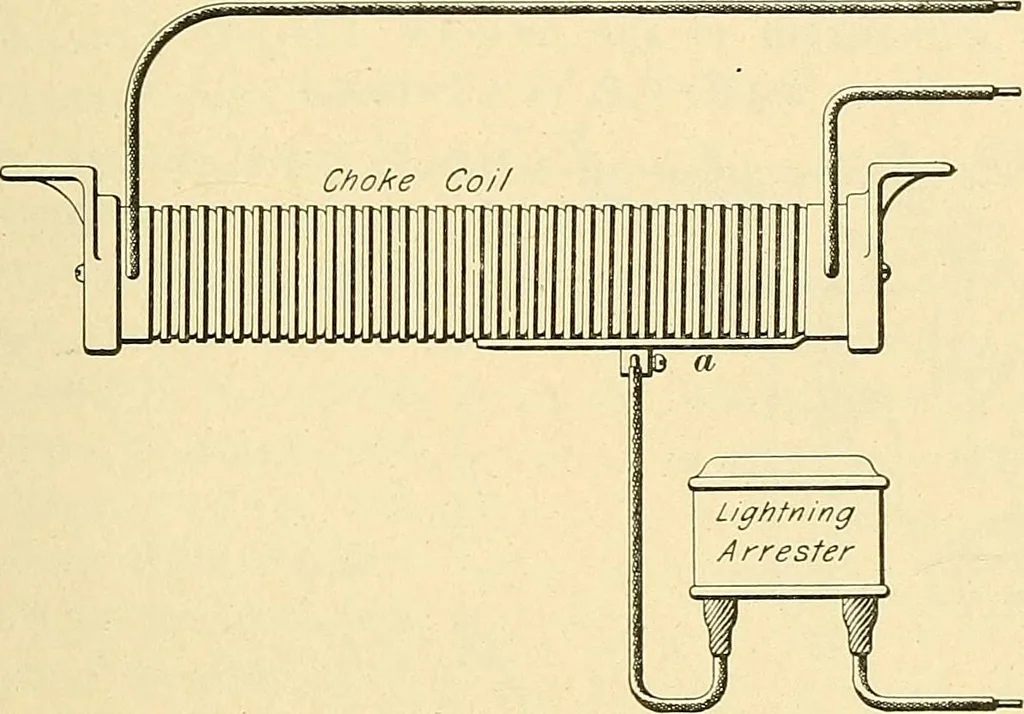

mped between the blocks b, b. Theseterminals are separated a short distance, and the spacebetween them is bridged over by a number of charred §35 ELECTRIC RAILWAYS. 31 grooves, across which the discharge leaps. Fig. 28 showsthe arrester as mounted on a car in connection with achoke coil. The… … To Groiinct Fig. 28. copper strap is connected to the line terminal of the arresterand is placed in close proximity to the turns of wire. Whena discharge comes in over the line, it can jump from any ofthe- convolutions to the strap and thus pass off through thearrester to the ground. In the great…
