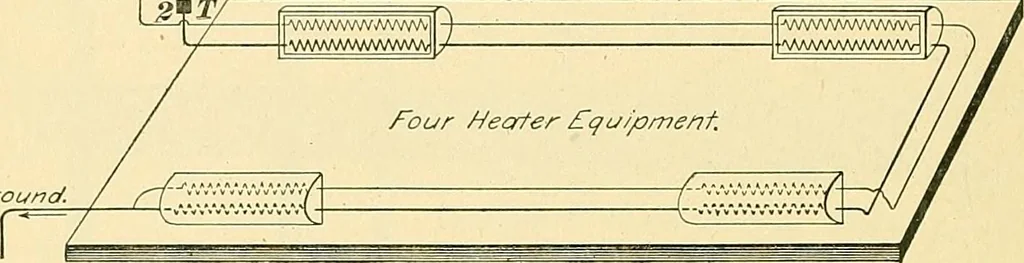

a side-seat closed car and is intendedto be set flush with the panel of the riser. The wiring for these heaters is carried out as shown inFig. 42. 32 ELECTRIC RAILWAYS. 25 39. Consolidated Heater Switcli.—Fig. 43 shows theheater switch with the cover on and off. This switch willhandle 30 amperes at… … 7b Ground. Fig. 42. position on which the switch rests is clearly shown by a dialnumber that appears through a hole in the cover. In bothviews of Fig. 43, the SMdtch is on the third point; on thispoint, the current goes in on the right-hand side of theswitch at the post marked T. The three arms a,…
