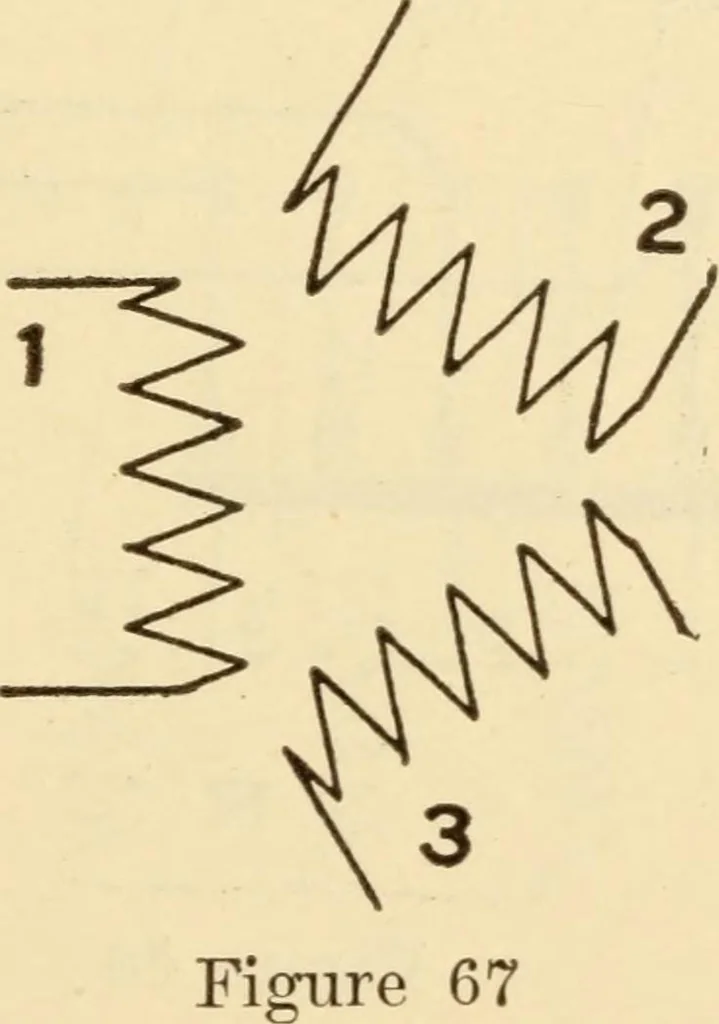

Figure 66 above. In the smaller sizes only the stator carrieswindings unless for some special reason the rotor isalso wound. The general appearance of the stator … winding is shown in Figure 66. This is a 3-phasewinding and the windings interlace all the wayaround. Diagrammatically such windings are usuallyrepresented as in Figure 67. 100 Operating and Testing The windings of the three phases are shown inFigure 67. If we connect adjacent ends together weshall…
