Electricians' operating and testing manual; (1910)
Horstmann, Henry C. [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] joint author · Chicago, F. H. Drake & co · leaf 174

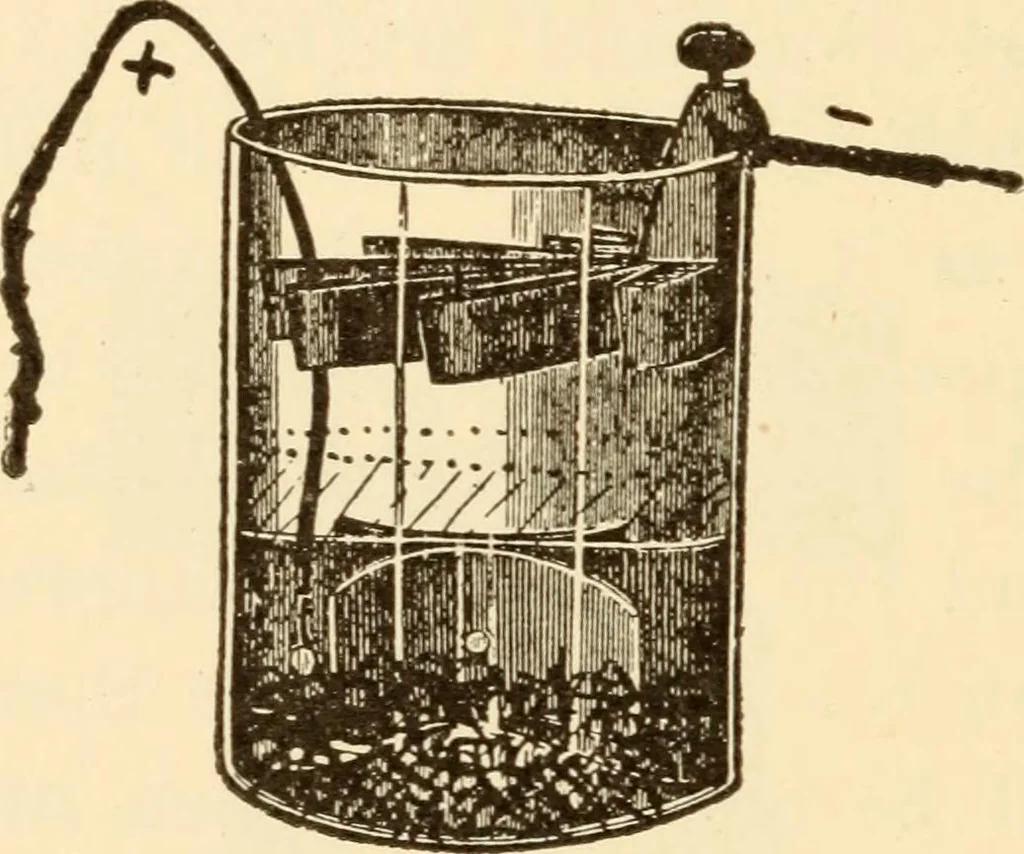

r of cells. 172 Operating and Testing The resistance of a number of cells in parallel isequal to the total resistance of one of the series groupsdivided by the number of sets in parallel. Primary batteries are divided into two classes; oneof these is suitable for continuous work only, and… … Figure 121 sists of copper located at the bottom of the jar asshown in Figure 121, and the negative of zinc ar-ranged at the top, as shown. Both of the elementsare immersed in a solution of sulphate of copper com-monly spoken of as blue stone. This type is suit-able only for such work as…
Electrical engineering · Electric testing
