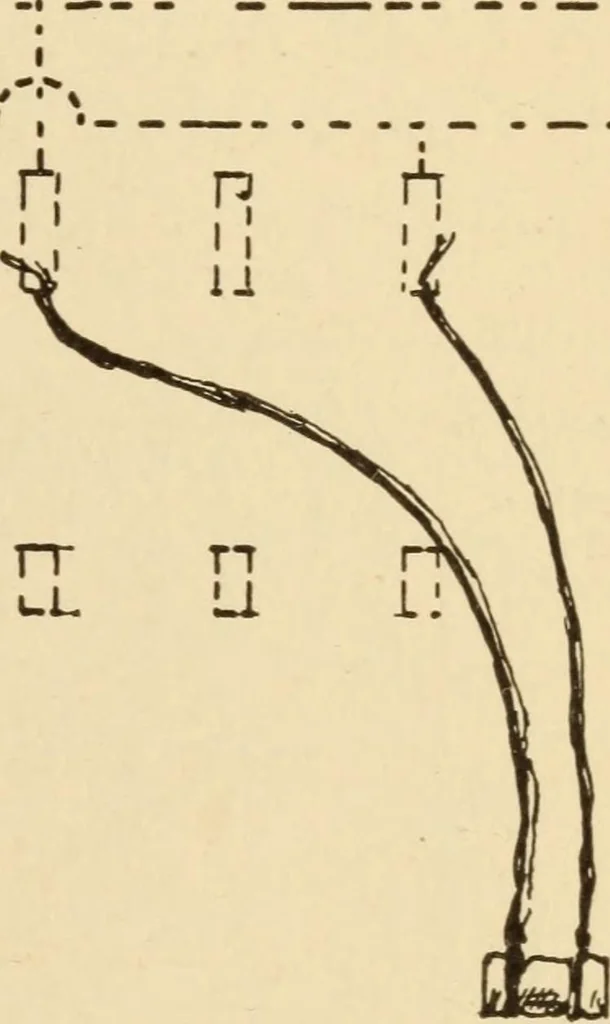

ines are connected between the dynamos tobe started and the bus bars, as shown. When the dy- Dynamo Operation—Direct Current 117 namo to be thro^^n in is up to voltage, the pressures ofthe bus bars and this dynamo must balance, and therecan be no noticeable current flowing through thelamps. If,… … Figure 78 are dark, the polarities of the dynamos are correct forparallel operation. In lieu of the lamps the test can be made by insert-ing one wire from each pole of the d^Tiamo into a cupof water and noting the bubbles that form. If thepolarity is correct the bubbles will form at the samepole of…
