Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 342

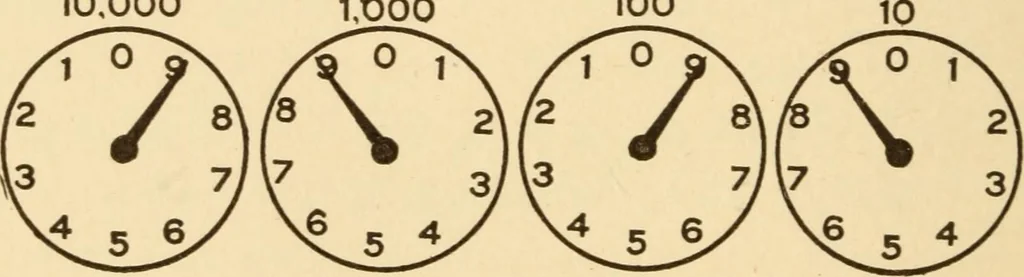

10.000.000 1,000 Figure 198 also registers 8; as the middle pointer has not passedthe 0, the 4th dial must be read 1; the last dial also 10,000 1,000 100 … KILOWATT HOURS Figure 199 indicates 1, making the total reading 1,188,900 watthours. In Figure 199 the readings on the meter dial are Recording Wattmeters 337 shown in kilowatt hours. The first pointer at the rightreads 9; as this pointer has not passed the 0 mark, thedial to the left must be read…
Electrical engineering · Electric testing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
