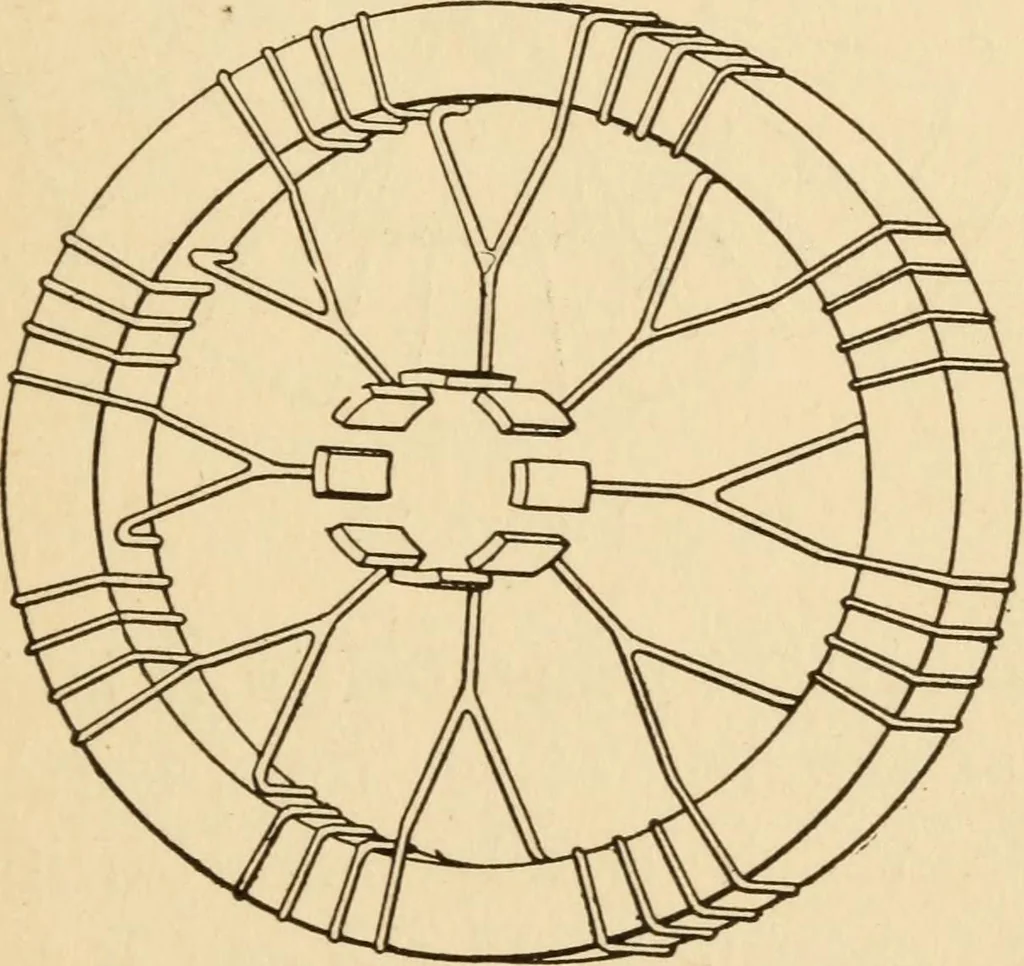

les of Dynayno-Electric Machines 47 irregular way. In practice armatures do not consistof a single coil and only in very exceptional caseswould these considerations in the extreme form apply.The commercial armature has a greater number ofturns of wire and for bipolar, or the simpler machines,… … Figure 31 By reference to Figure 32 we can continue ourstudy of the armature in. a more commercial form. Bynoting the position of the brush B we can see that itis about to short circuit the coil connected to the two 48 Operating and Testing segments to which it is nearest. This coil is,…
