Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 76

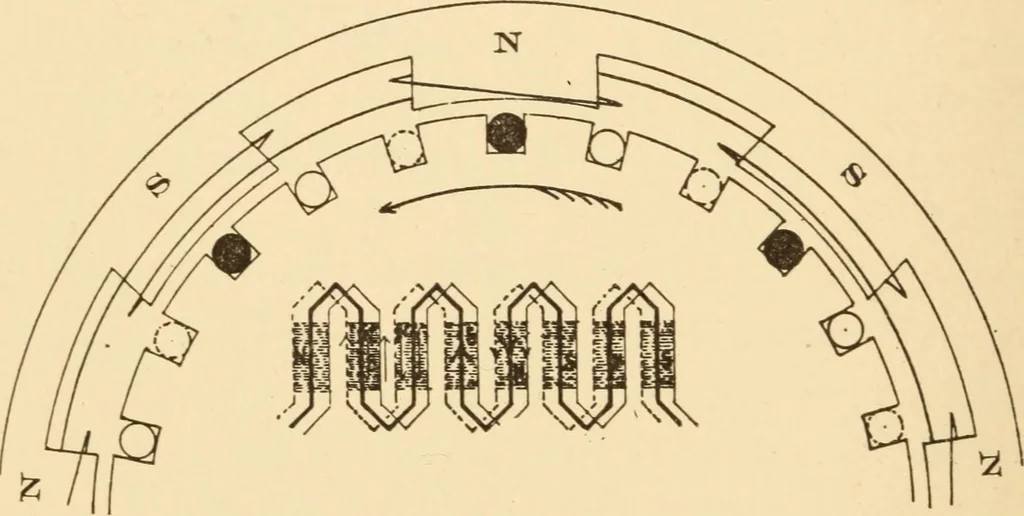

can be diverted from the field circuit. In actual practice the generating coils of alterna-tors are not wound upon projecting coils but laid intoslots as indicated in Figure 54. Sometimes each slotcontains only one wire; sometimes there are many.The number of slots per pole also varies. For twoand… … Figure 54 positions of the wires for one of the phases is indi-cated by the black circles. As these sweep aroundunder the pole pieces the currents induced in eachw^ire are in a different direction and to make all ofthem generate in series they are connected on the twosides of the armature as shown…
