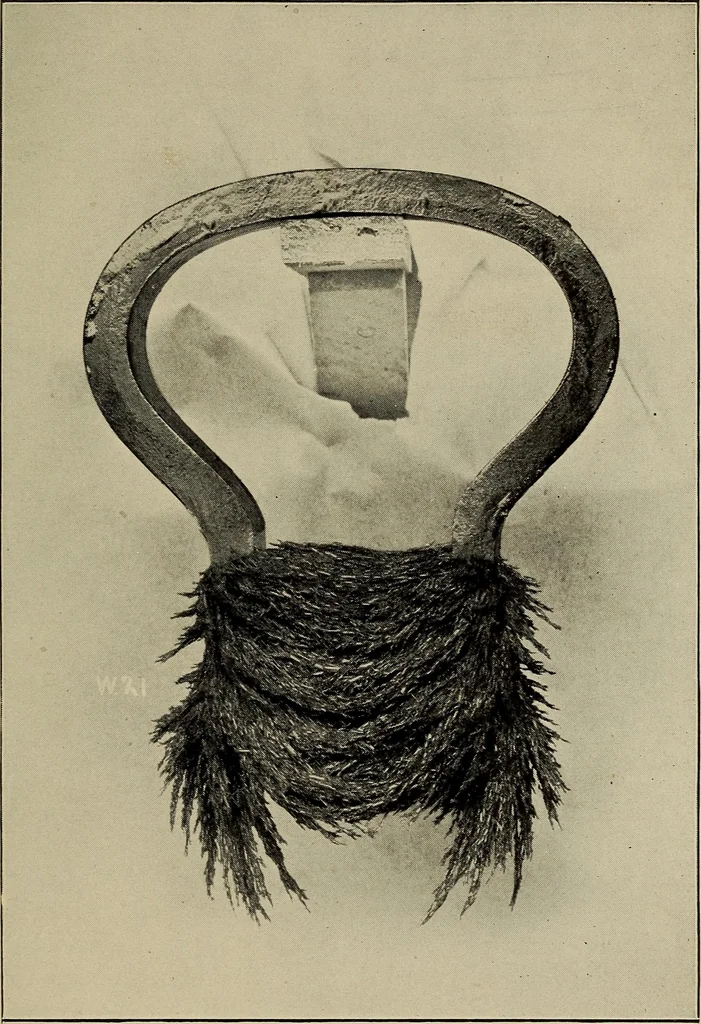

be found that the strengthof the magnet appears to be greater than if the same pieceof steel had been magnetized in the shape of a bar. Thisis due to the fact that the magnetic emanations which issuefrom the north pole cover an air gap, as indicated by thecurved lines in Fig. i, and enter the south… … Fig. 7. — Horseshoe Magnet from Weston Voltmeter. 6 EXPERIMENTAL ELECTRICITY and south poles close together as in a horseshoe magnet,the air gap, or path of the magnetic circuit, is considerablyreduced, increasing the apparent strength of the magnet.Figure 7 illustrates an excellent and powerful…
