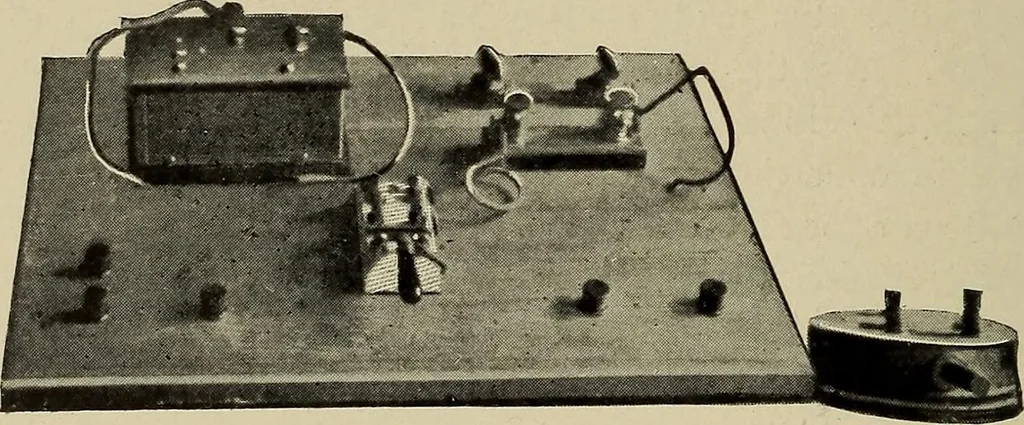

FlG. 421. — Weston Projecting Instruments. throw double-pole switch is usually arranged so that the galvanometerterminals come to the middle of the switch ; the switch when thrownin one direction indicates volts, and when thrown in the other directionindicates amperes. For speed measurements a… … FlG. 422 — Combination Board used with Projecting Galvanometer. ter is belted to the apparatus under test, and the magneto terminalsare wired to the galvanometer with resistance in the circuit. Thisresistance is varied until a uniform relation is obtained between speed APPENDIX 341 and deflection.…
