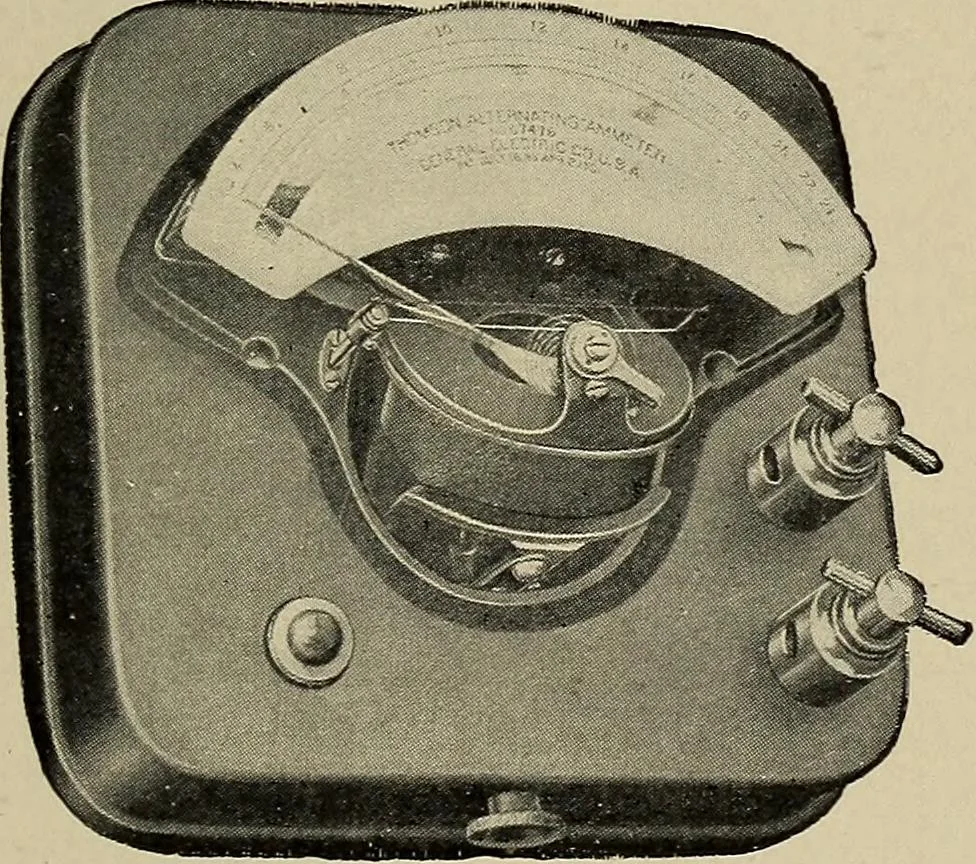

cale as thevane turns. The vaneturns when the coil isenergized, as the ironvane tends to enter moreand more into the mag-netic field of the coil tohelp accommodate thelines of force passing through it. A flat spiral spring ofhighly tempered phosphor-bronze, mounted upon the axle,returns the needle… … Fig. 72. — Thomson Inclined Coil Ammeter. 42 EXPERIMENTAL ELECTRICITY resisted by a friction damping device operated by a smallpush button. The whole instrument, Fig. 72, is quite lightand is inclosed in a gun-metal case; owing to its lack ofpermanent magnets it retains its calibration over a…
