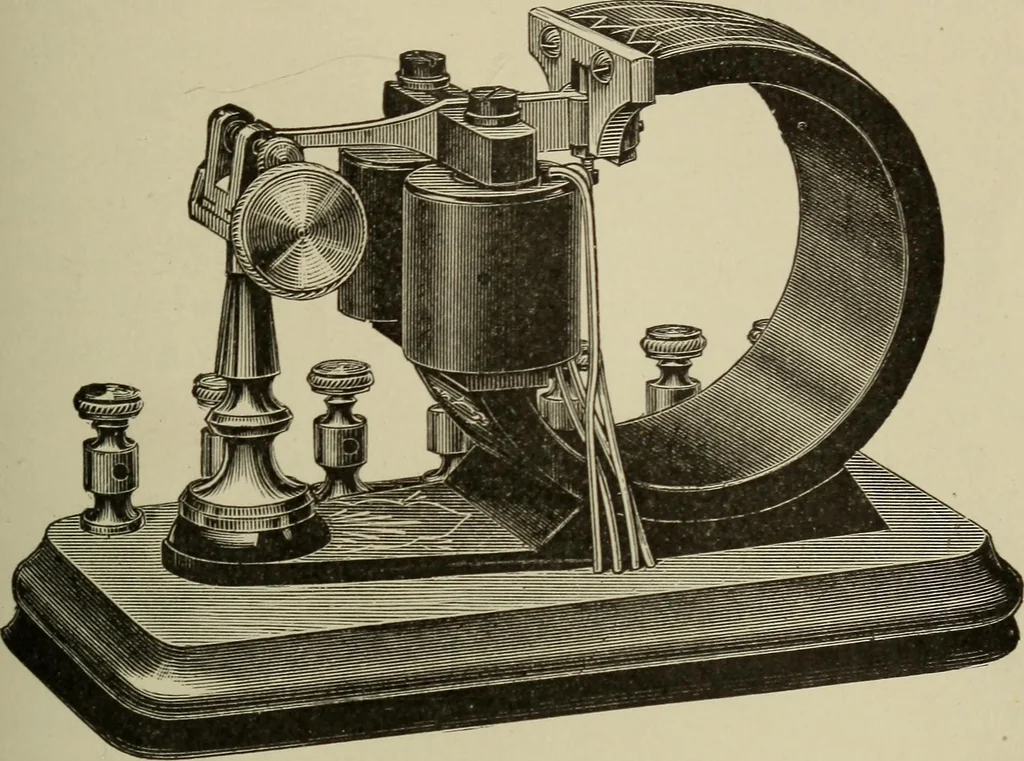

rtant. Transmitter.—A transmitter, connected with the keyand operated by a small battery, closes and opens thecircuit through the main battery, and also through thecentral ground wire; always opening one circuit as itcloses the other. The neutral relay, for duplex transmission, has beensuperseded… … Fig. 90. The Polarized Relay.—It is unnecessary to wearythe reader with a full description of the polarized relayand its mode of operation. But it may be stated brieflythat it is constructed with a curved steel magnet com-bined with an electromagnet, as shown in Fig. 90. Thelatter has two coils…
