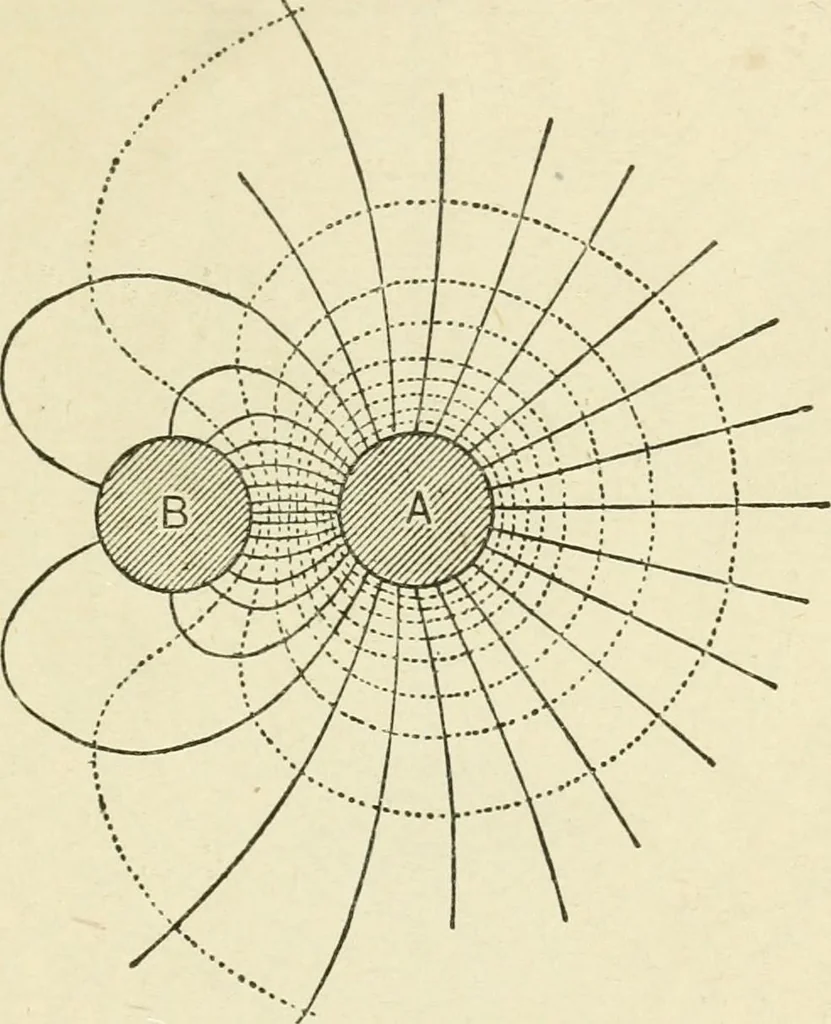

rom this side lines of force equal innumber to those entering the ball, start and travel towardsthe walls of the room. The dotted lines again representthe equipotential surfaces. 22] ELECTRICITY AS A MEASURABLE QUANTITY 37 In Fig. 18 is shewn the result after the second ball hasbeen connected by a… … Pig. 18.By pennlssion, from Watsons Physle$. oppositely electrified ends move up together; the lines closein on the wire and collapse, and we are left with the distribu-tion figured. The tension along the lines of force in both these casestends to draw the two conductors together. The distribution…
