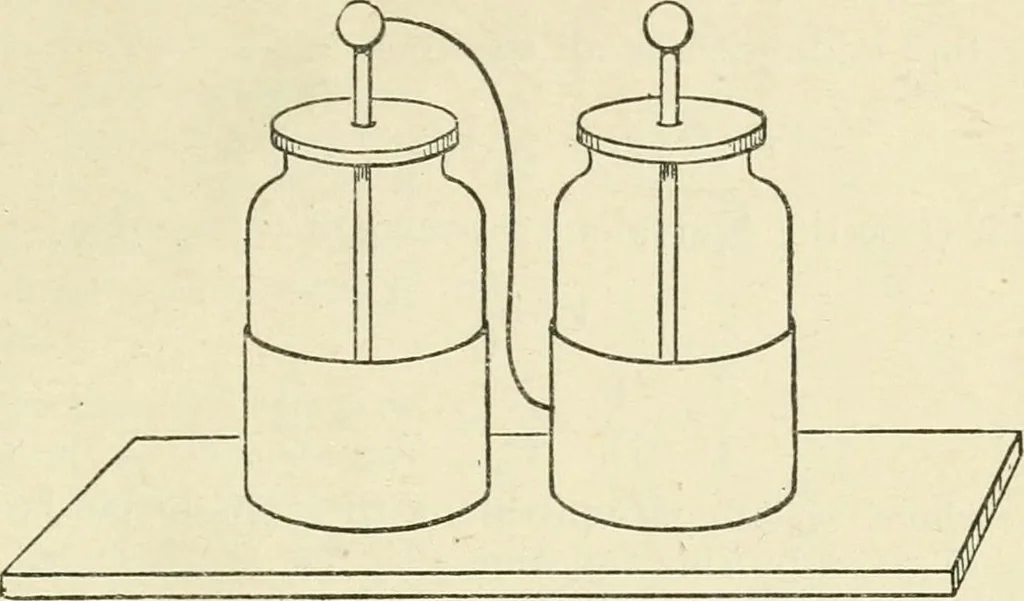

oatings are also connected. In suchan arrangement it is clear that the capacity of the whole isthe sum of the capacities of the individual jars. For some purposes jars are connected as shewn in Fig. 31,they are then said to be in cascade. The outer coatingof the first jar is connected to the inner… … Fig. 31. Suppose a charge Q given to the inner coating of the firstjar, the one to the right hand in the figure. Let its potentialbe Fi and the potentials of the successive inner coatings beFj, Fg ... F„. The potential of the outer coating of the nth.or last jar is zero. The charge Q induces — Q on…
