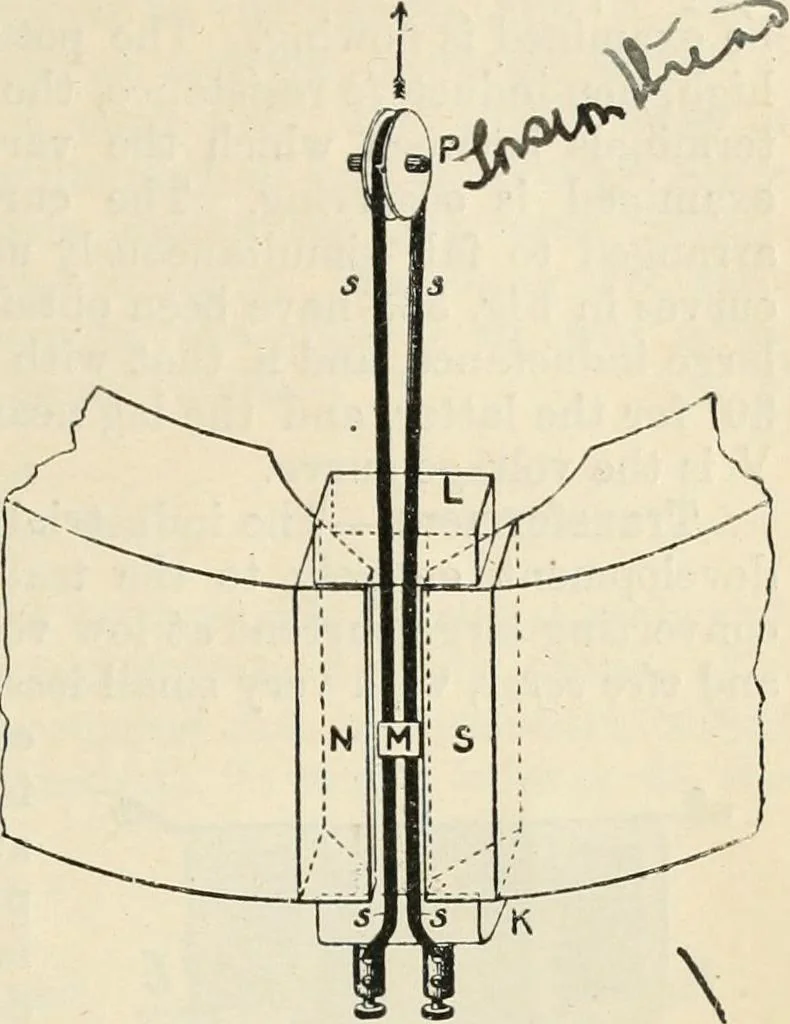

Lp. Duddell Oscillograph.—Several devices have been employed todetermine the wave foim of an alternating electromotive force orcurrent, but probably the most convenient is that used by W. Duddell ^in the instrument known as the oscillograph. This is essentially adead Ijeat gal^■anoraeter, modified… … Fig. 382. movement copies the comparatively low frequency force due to thealternating current. The phosphor-bronze strip sssspasses over the pulley P (Fig. 332),the ends being attached to termi-nals fixed in the block K. Aspring, not shown in the figure,pulls P upwards, and maintains aconsiderable…
