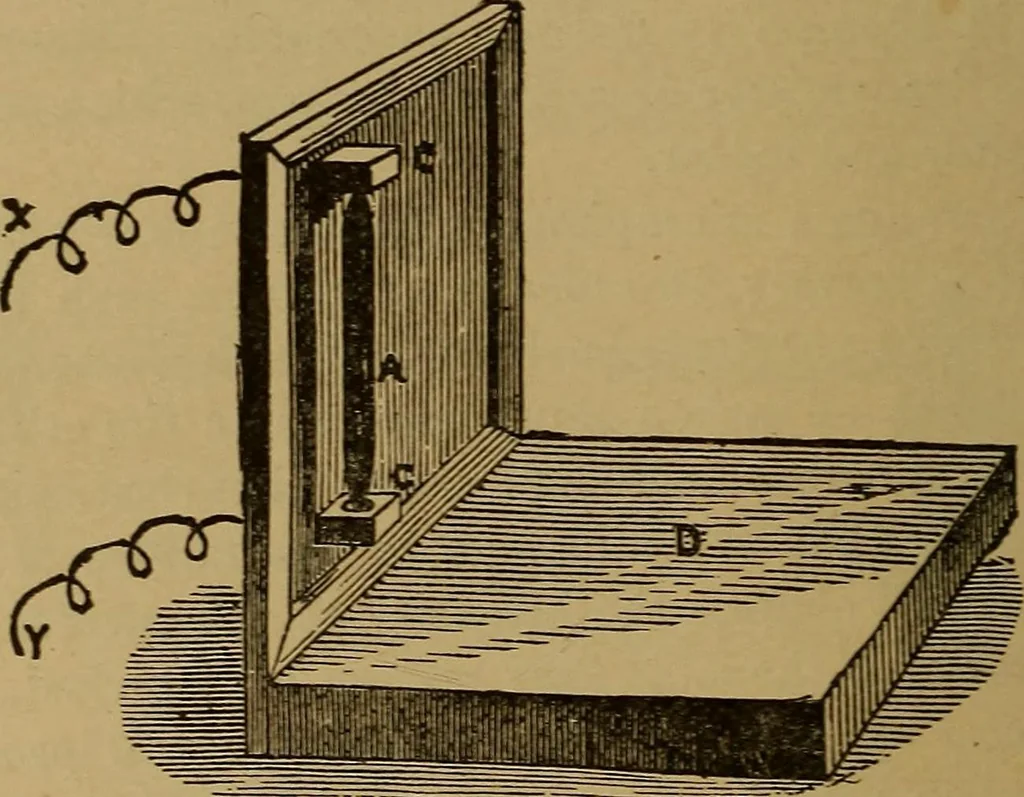

d,almost all depending on loose carbon contacts. Asimple form is shown in the illustration. In it C Care blocks of carbon between which a spindle of car-bon A is sustained in very loose contact. The base 144 ELECTRICITY SIMPLIFIED. X Y are the D serves to support the instrument,ends of the line… … Fig. 29.—Microphone. the central office and the other subscriber actuates asmall magneto-electric generator, which rings thebell, calls up the operator at the central office, and,when contact is made, rings the bell at? the receiversinstrument. The whole telephone system, it will be…
