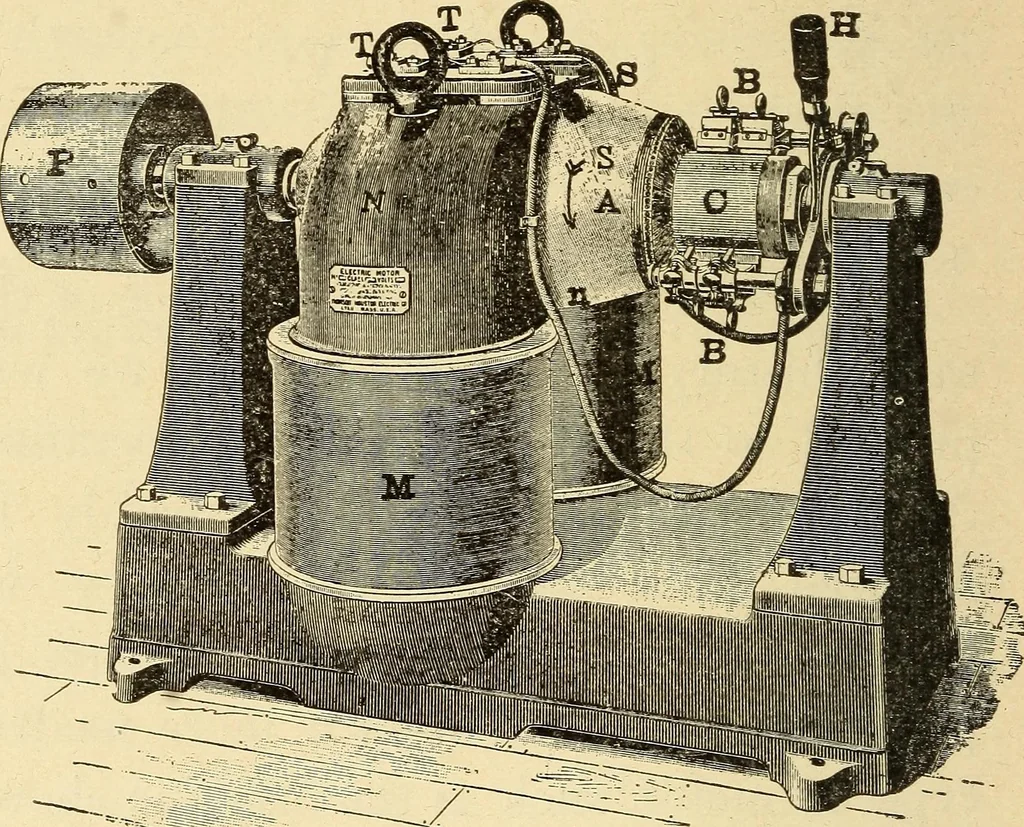

et it will, perhaps, bepreferable to base it upon a more moderntype of motor, such 5tS the machine sho^vnin Fig. 21. This machine is of the hipolartype. It has bwo field poles N and aS^,produced by the magnetizing coils J/, M.Between these poles the a: mature A^ isfree to revolve. The comimitator… … Fig. 21.—Bipolar Electric Motor. in such a manner as to produce in it t\Y0poles, n and s^ midway between the polesN and S^ of the field magnet. The arma-ture is, therefore, pulled around in the THE TRAlSrSMISSION OF POWER. 121 direction of the arrow, and, as it revolves,the current entering the…
