The electric motor and the transmission of power (1906)
Houston, Edwin J. (Edwin James), 1847-1914, Kennelly, Arthur E. (Arthur Edwin), 1861-1939, joint author · New York : McGraw Pub. Co. · leaf 160

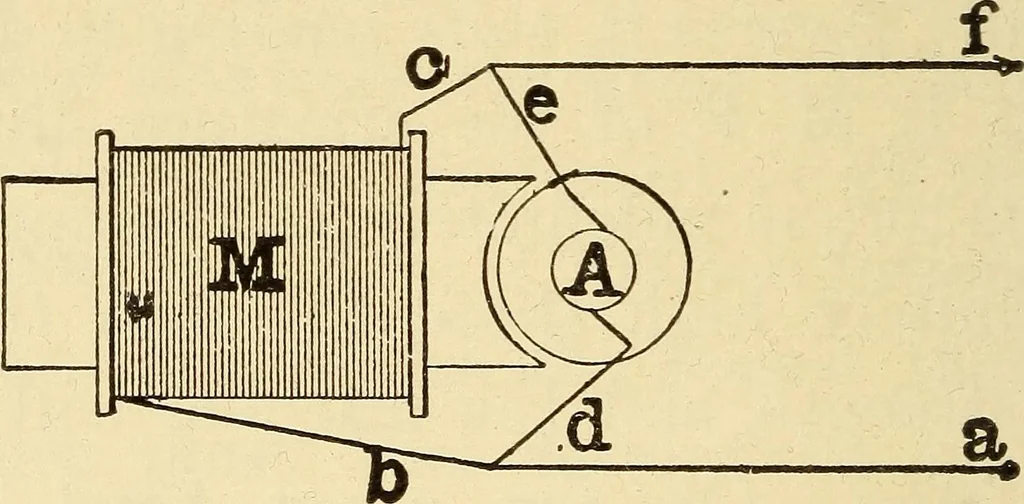

M. F., they will developa greater magnetic current or flux in themagnetic circuit of the machine, includingthe armature, and this increased flux willproduce the C. E. M. F. Iequired from themotor at a correspondingly reduced speed. 152 THE ELECTRIC MOTOR AND In practice, motors are not nsually… … Fig. 26.—Diagram of Shunt Winding. tvound moto)\ or in shunt with thearmature, producing w^hat is called ashunt-ivound motor. Fig. 26, represents dla-grammatically the connections of a shunt-wound motor. Here the ends h and c^ ofthe magnetic coils M^ are connected inshunt wdth the ends d and e, of…
Electric motors
