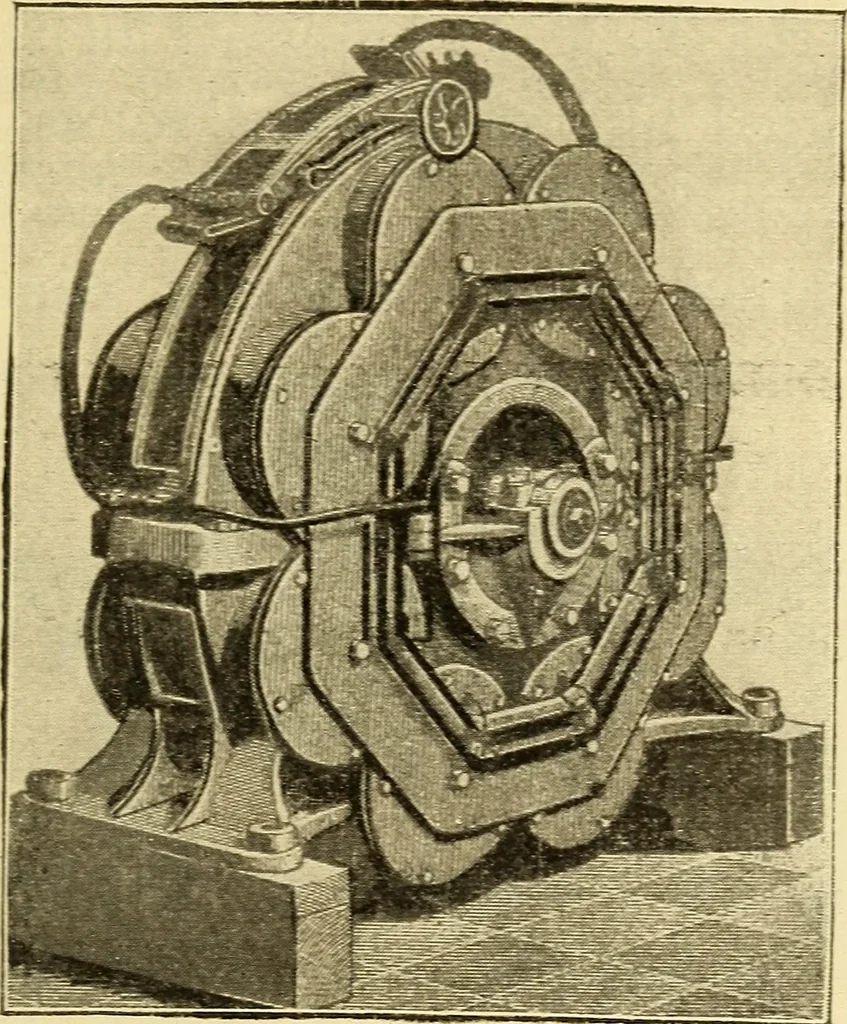

wheel. In this arma-ture the conducting bars k^ k, k, on theperiphery of the wheel, form the commu-tator upon which the collecting brushesare intended to rest. Fig. 36 representsthe complete machine employing thisarmature. The magnets are here enclosedin a field frame, and present their… … Fig. 36.—Disc Akmature .Motor. (1) The core or body, wliicli is always ofsoft iron. (2) The exciting coils of insulated cop-pei wire, which are wound upon the coie,and in which the E. M. F. is generated byrevolution throuo-h the flux. (3) The commutator, by means of 174 THE ELECTRIC MOTOR AISTD…
