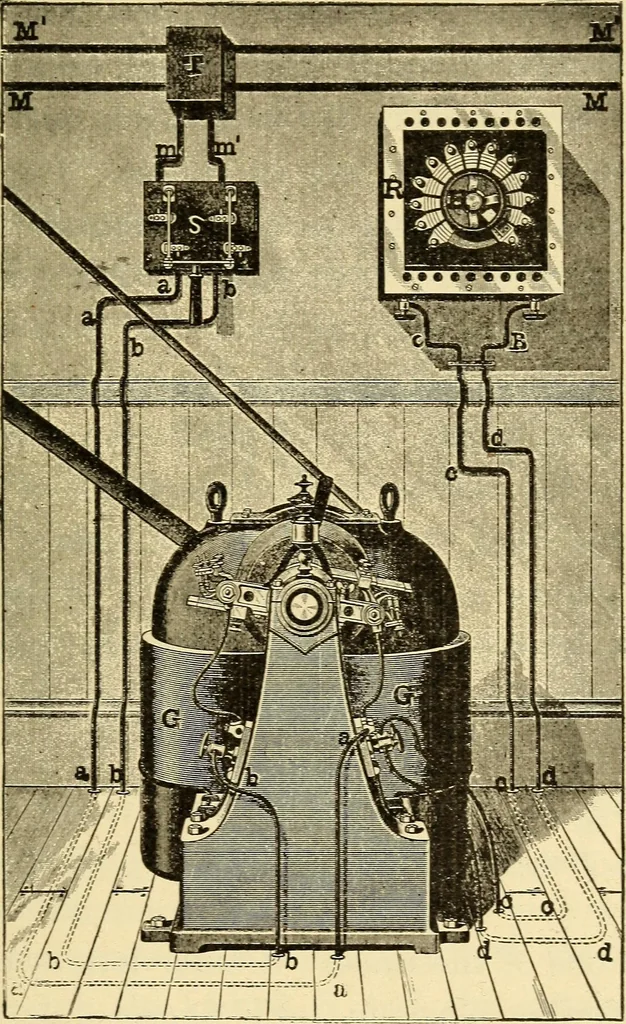

Fig. 55.—Stakting Rheostat. A form of starting rheostat is shownin Fio;. 53. Here coils of iron wire aremounted on a suitable frame and con-nected in series. By turning the switch/Sy over the contact points, a greater orsmaller number of these coils may be THE TKANSMTSSIOX OF PO^VER. 205 … Fig. 56.—INSTALLATIo:^s of Shunt-Wound Motor 206 THE ELECTRIC MOTOR AKD included in the circuit. When the switchis on the extreme left contact point, nocoils are in circuit, and when on theextreme right, all are in circuit. Fig. 54shows a different type of starting rheostatintended for use with…
