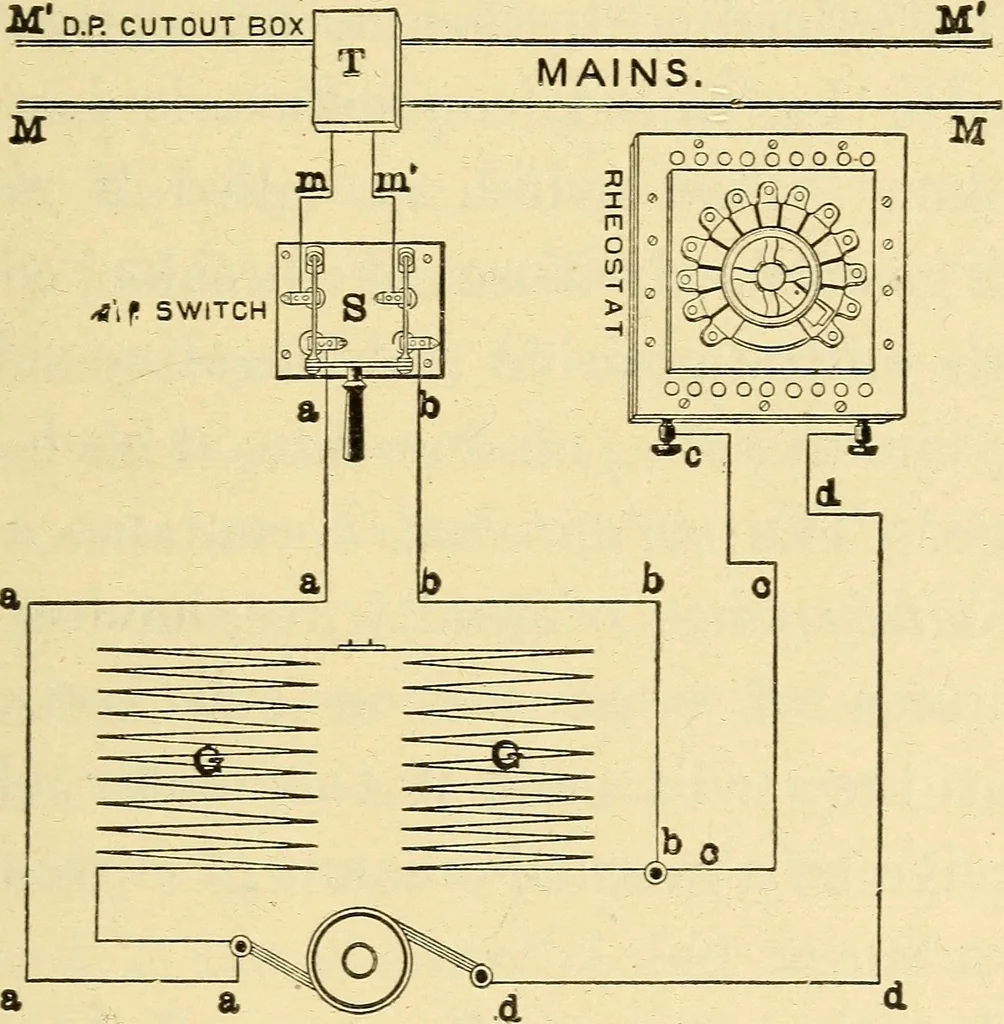

als. Fig.55, shows a similar apparatus of largersizes intended for use with more power-ful motors. Fig. 56 shows, in perspective, the ordi-nary method of installing a shunt-woundmotor, and Fig. 57, the diagrammatic con-nections of the same. Similar letters referto similar parts in both figures. It… … Fig. 57.—Connections of Shunt-Wound Moto.r. of the motor, are connected with the motorthrough the switch /S^, and the cut-out boxT. The switch aS^, consists of a handle at- 208 THE ELECTRIC MOTOR AND tached to a pair of copper knife blades,in such a manner, that on depressing thehandle, electrical…
