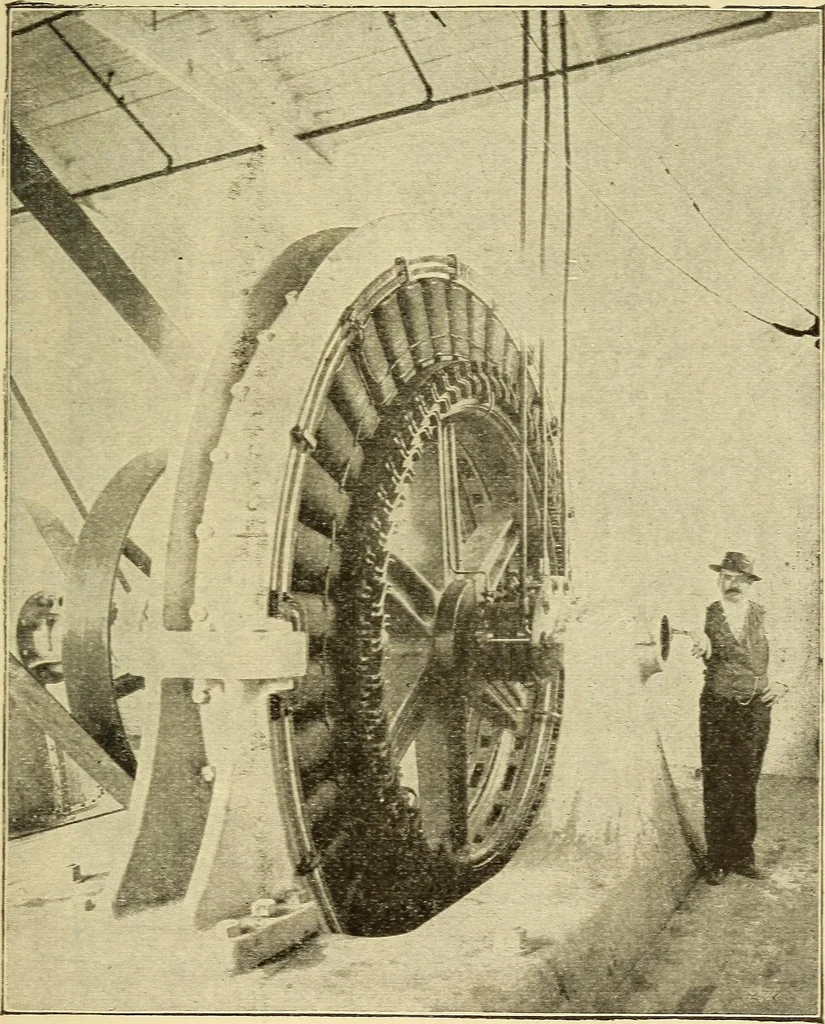

two. This ar^-rangement is represented in Fig. 66. Jk T 1 A ^ d 1 1 2| f o . fl D oo 2 ^i Iff kl ^ E i 3 T 1 1^ 1 Fig. 66.—Triphase Three-Wire System. Fig. 67, shows a form of triphasei having40 poles and capable of maintaining anactivity of 500 KW; 166 2/3 KW in eachof its three circuits. The… … Fig. 67.—Thuee-Phase Alteenatoe. 40 Poles, 500 KW. 270 THE ELECTRIC MOTOR. 107^ X 213^ and its height 150^ Thetotal weight is 108,000 pounds, or about216 pounds per KW of output. Thearmature has three sej)arate windings inwhich triphase E. M. Fs. are developed.The three main leads are shown in…
