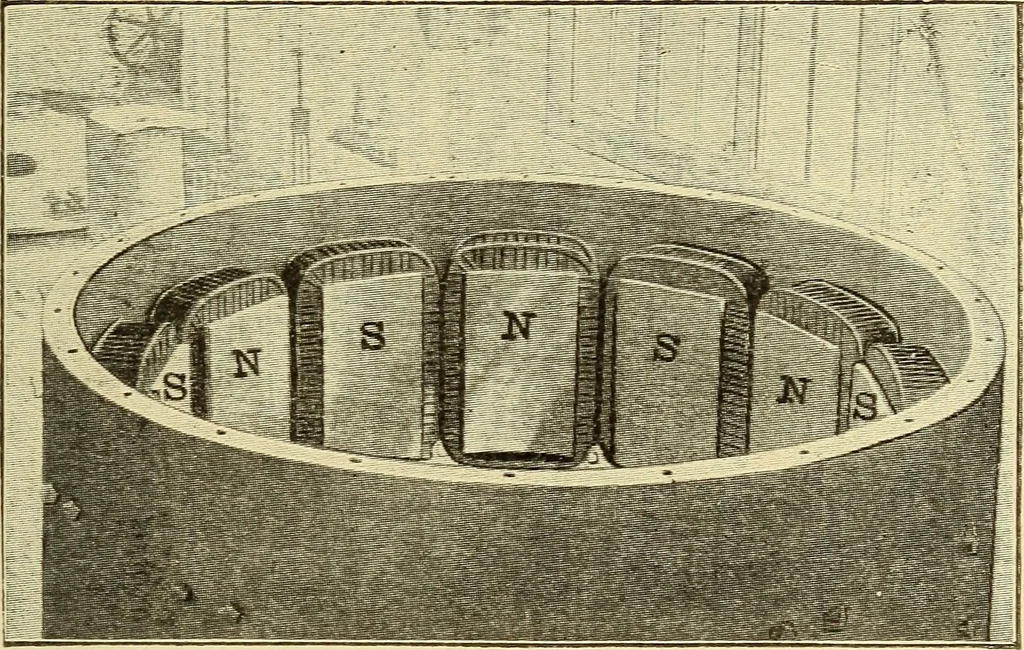

Fig. 94.—One of the 5,000 HP Armatures. The revolving field ring, with its 12poles, is represented separately in Fig. 95.The poles JV, S, are of soft steel, rigidly THE TRAT^SMISSION OF POWER. 319 bolted on the interior of tlie solid nickelsteel ring, and tlie field spools are repre-sented in… … FiG. 95.—Field Ring with Poles and Bobbins in Place. nently excited by a continuous currentfrom a separate generator. The field ring-is 11 T in diameter, and revolves at 250revolutions per minute. The cover of thefield ring is shown in an inverted position 320 THE ELECTEIC MOTOR AND in Fig. 96. A,…
