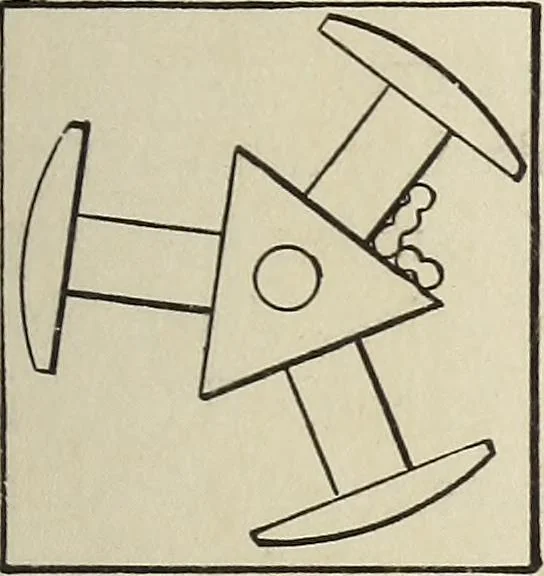

the dividers, thethree pole-pieces equally, usingthe three radial lines as centerlines. When this pattern has beencut out and carefully filed toshape, it is used to mark out theFirst, center-punch and drill ahole for the shaft, exactly in the center ofthe sample lamination. Lay the pattern on the… … Fig. 55. ArmatureLamination. other laminations.1/4-inch 130 ELECTRIC TOY MAKING. The sheet iron pieces can be trimmed down to theirouter shape with a pair of heavy shears, and theirregular portions cut out with a solid end punch, asshown in Fig. 56. This punch can be made from a piece of tool steel…
