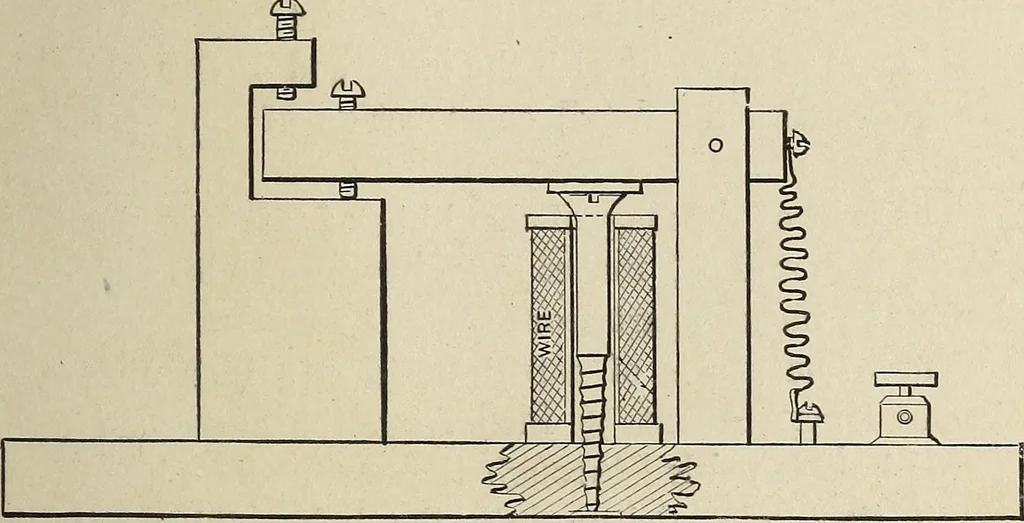

the cores of theelectromagnet are formed of 5-16-inch flat-head wood SOUNDER. 157 screws about 2% inches long. The heads of themagnet coils are made of %-ihch sheet fiber 1 inch indiameter. The two upper heads should have clear-ance holes in them, which will allow the screws topass through freely,… … Fig. 66. Sounder, with Detail of Magnet. the screws and at the same relative distance fromthe head. The body of the screws should be woundwith a layer of paper shellacked, after which ten lay-ers of No. 2i single cotton-covered magnet wireshould be wound on each screw. The best way to dothis…
