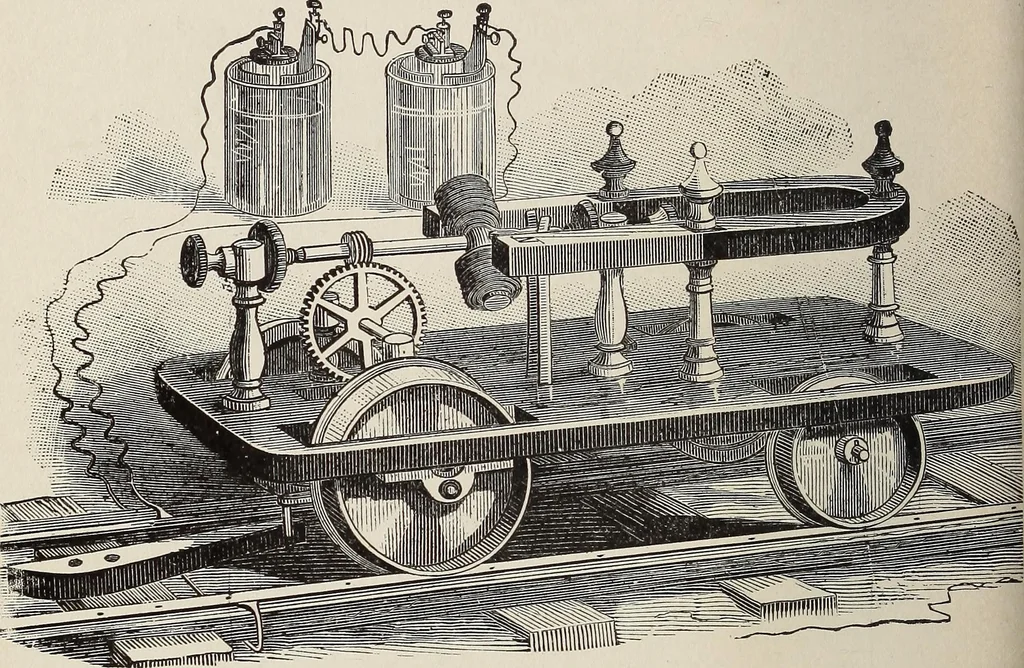

lectric locomotive, based on the use of a motorsuch as already described under the title of PagesKotating Armature (page 56), is illustrated here.The general construction is clear from inspection ofthe elevation. The motor is carried horizontally ona little car moving on a railway, and a… … Fig. 23. The Electric Locomotive. The current is taken from the rails, the motor act-ing as a bridge across them. The necessary connec-tions for carrying out the plan, and the arrangementsfor automatically reversing the engine, will be under-stood from the view showing the bottom of the plat-form,…
