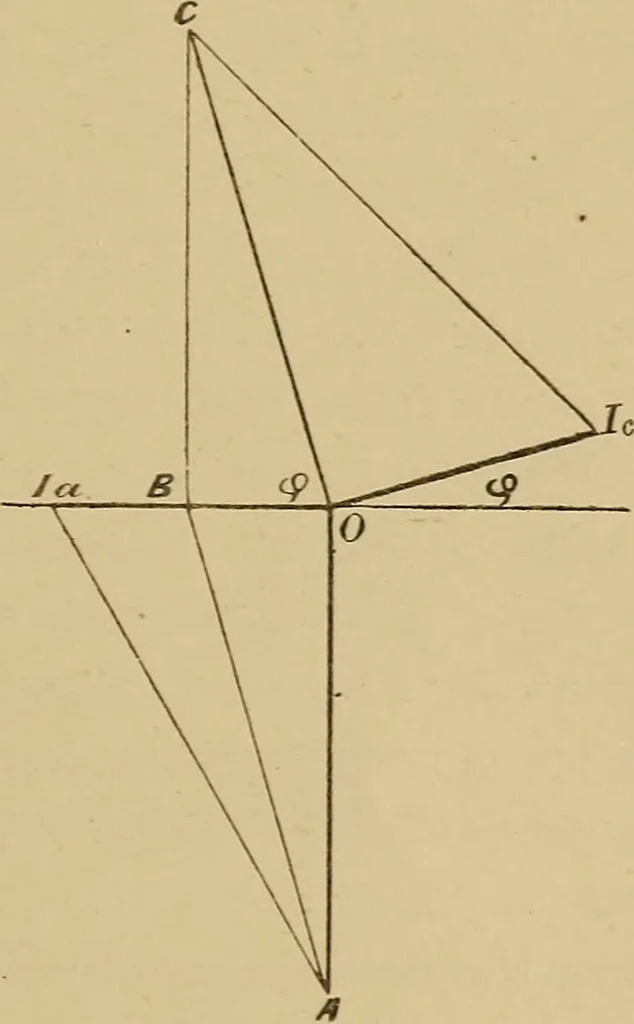

eld due to armature reaction pro-duced by the ampere-turns 0/«. Then O C must be the SUPPLY VOLTAGE CONSTANT. 329 field impressed by the current in-the magnet coils, andO Ic the corresponding ampere-turns, the angles O C I^and OAI^ being, of course, equal. The armatureampere-turns are proportional… … ture current, and since the former is constant, and thelatter proportional to O A = B C, we find that the lineB C may be made to represent directly the torque if thescale be suitably chosen. The length of this line repre-sents, therefore, two things, namely, speed and torque,from which it follows…
