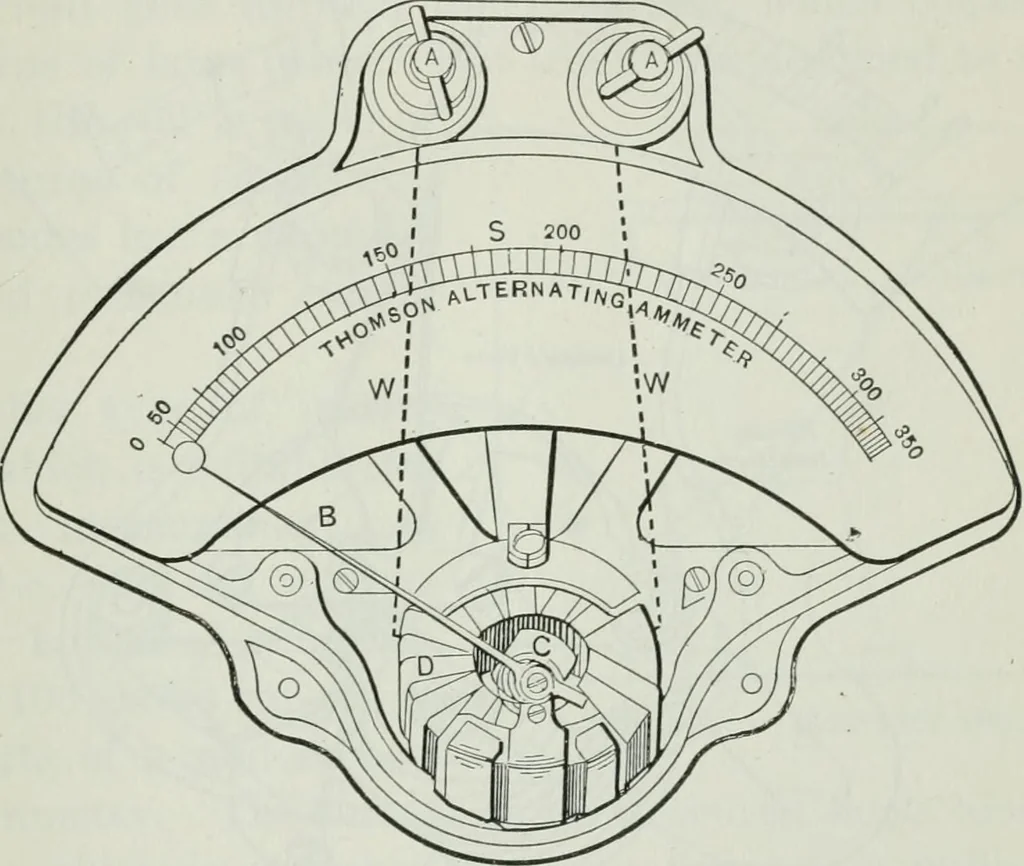

ch current then really flows, through the heater? ELECTRICAL MEASURING INSTRUMENTS 169 123. Other types of ammeters. Currents which rapidlyalternate in direction, as do the currents of many electric-light plants, cannot be measured by magnetic instruments hav-ing permanent magnets, since the… … Fig. 104. — Thomson inclined coil meter. used on either direct-current (d-c.) or alternating-current (a-c.)circuits and this is the moving-iron and fixed-coil type ofammeter. One form, known as the Thomson inclined coilmeter because designed by Mr. Elihu Thomson, is shown infigure 104. In this…
