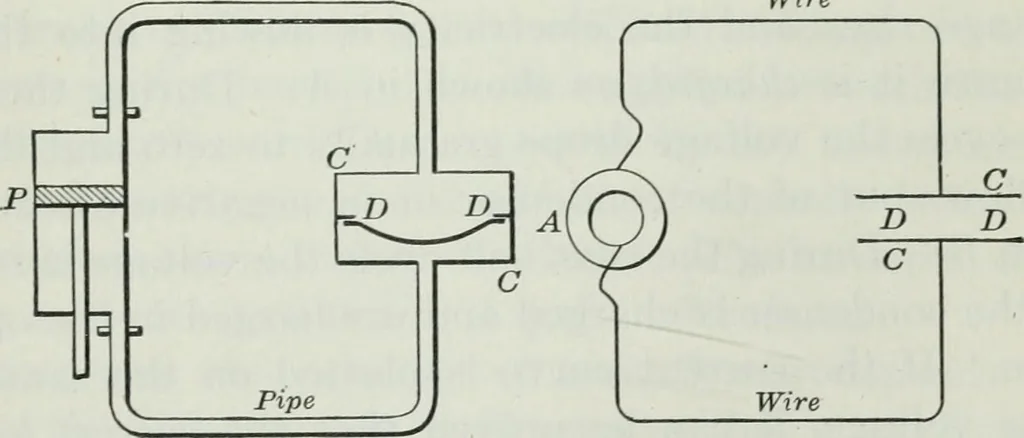

her, thus leaving the circuit open, the lamp is not lighted. We say thatthe lamp glows because there is capacity in the circuit. 234. What is the action of a condenser? Perhaps we canpicture the action of a condenser by comparing it to a box ina pipe line, as shown in figure 232. This box is… … Fig. 232. Water Electricity Mechanical analogue of a condenser in circuit. This reciprocating pump displaces the fluid, first in one direc-tion, as the piston travels upward, then in the other, as ittravels downward. Thus the surging of the fluid back andforth subjects the rubber diaphragm to a…
