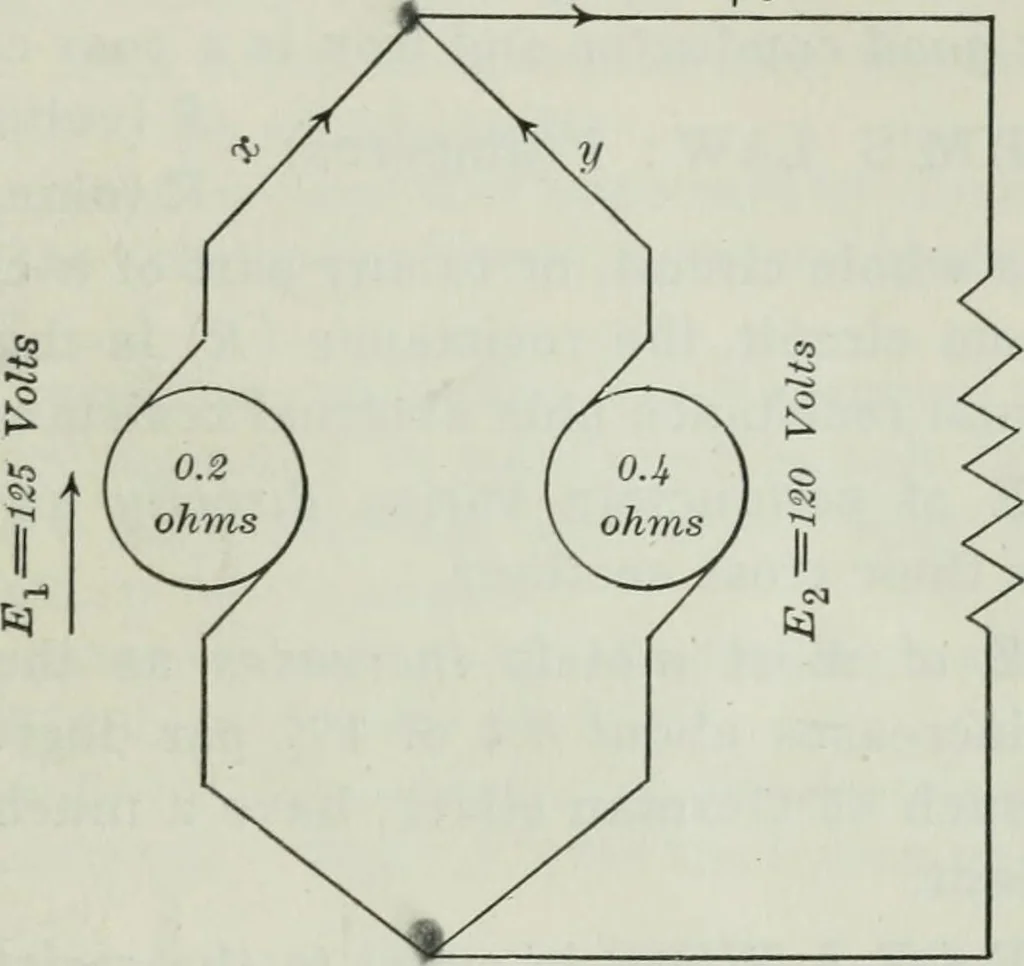

I16) =576 volts. Current in EF = 180 -116 = 64 amperes,and voltage across car 2 equals 580 - (0.14 X64) =571 volts. ELECTRIC CIRCUITS AND FLOW OF ELECTRICITY 63 Problems 1. A shunt generator of 125 volts and 0.2 ohms armature resistanceis connected in parallel to another generator of 120 volts and… … Fig. 33. — Unequal generators in parallel feeding line. Hint. — Let x = current through 1st generator, y = current through 2d generator,and x-\-y = current through line. If the current value comes out negative, reverse the arrowhead. 2. A circuit is arranged as shown in figure 123. The resistance…
