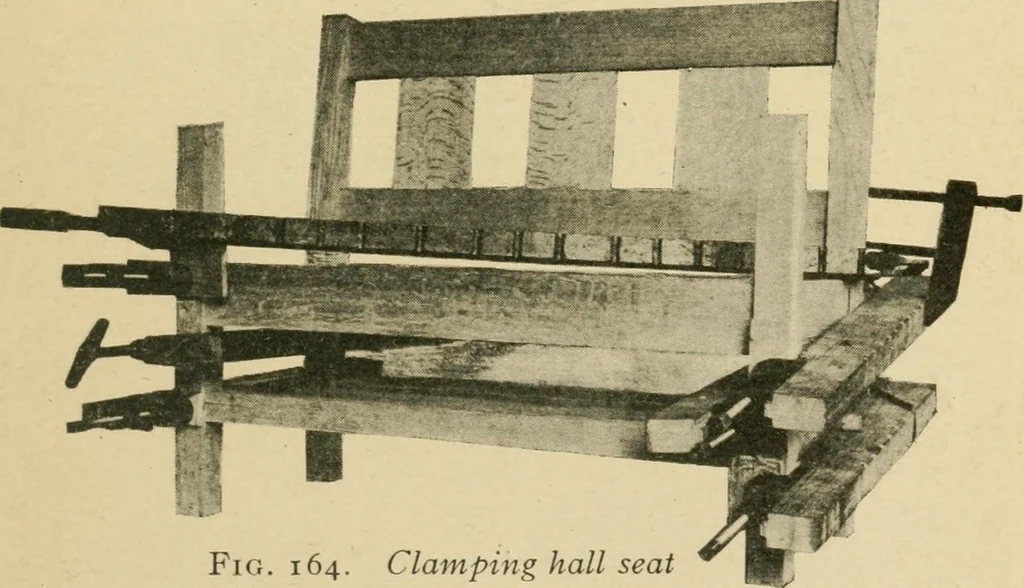

n looking for wind, make twostraight edges. Be sure that they are straight andtheir edges parallel and look toward the light. HALL SEAT 167 Clamping. In Fig. 164 is shown how to clampfront and back together. Notice the clamp that hasbeen placed diagonally across the seat. This is topull the corners… … Fig. 164. Clamping hall seat The arms are doweled both at the back end andon to the top of the front legs. Two |-inch dowelsshould be placed at each joint. The clamping ofarms to place will require patience and care. Fig.165 shows how this is accomplished. If you lackclamps for securing the arms in…
