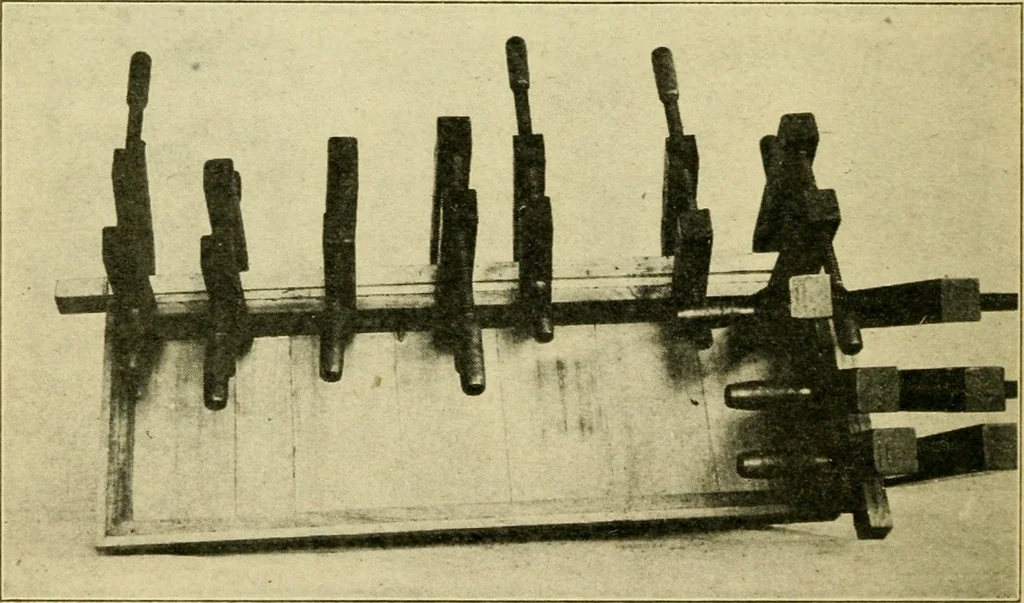

204 ELEMENTARY CABINETWORK length of the center rail. Should the box vary-any in length from the size which is given in thedrawing, place the columns in the same relativeposition at the corners and make the lower frameto correspond. Rails. Locate the centers of the dowels on thebottom of the box… … Fig. 197. Clamping molding This gives the correct space between the tenonson the center rail. Make the mortises and tenons and join thecenter rail and two cross rails, being extremelycareful to keep all square and out of wind. Find the center of each cross rail and measureeach way, one-half the…
